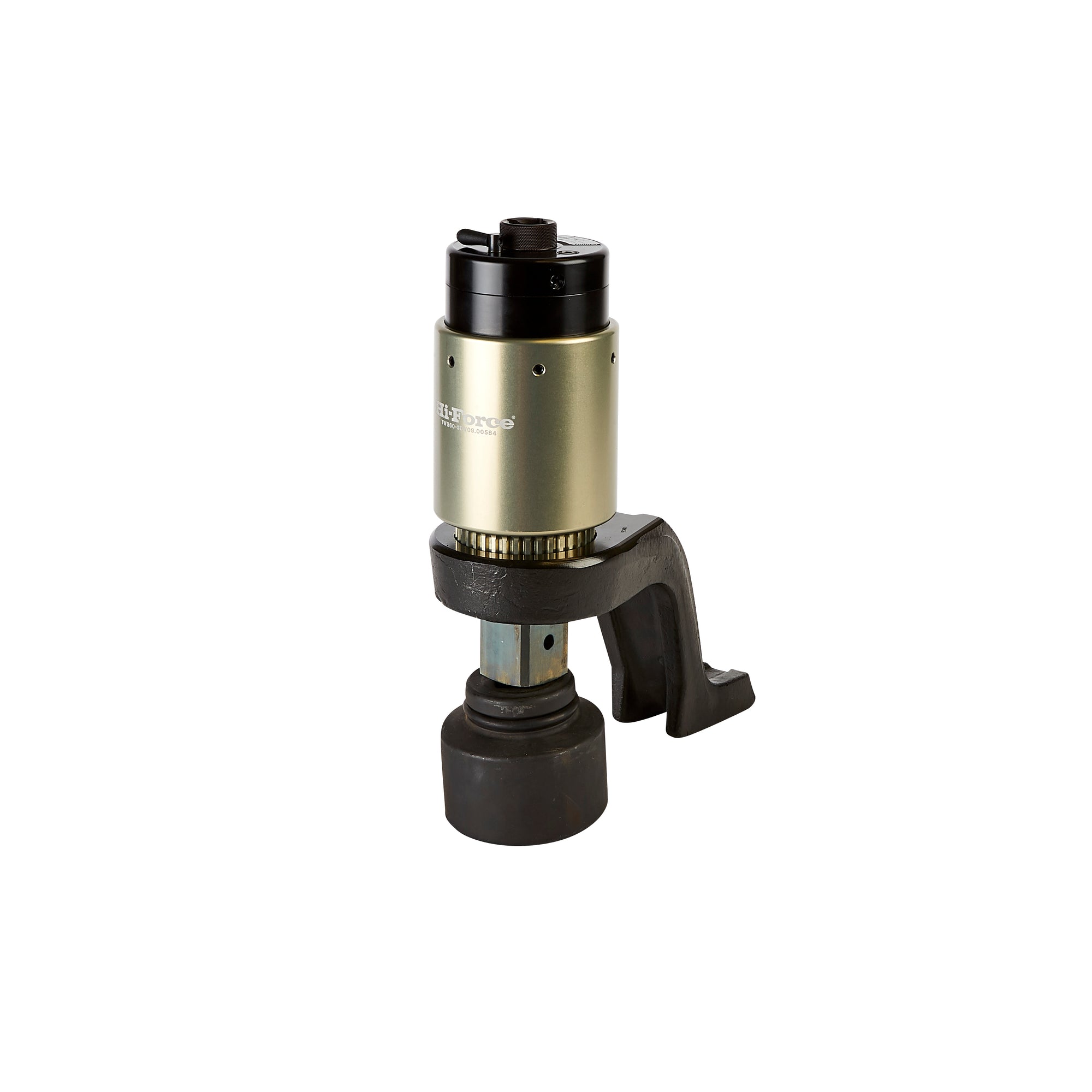

TWG Manual Torque Multiplier

• Torque capacities up to 7,330 lbf.ft
• Lightweight aluminum housing
• Supplied complete with reaction arm


Choice of output square drives of ¾”, 1”, and 1 ½”. Suitable for use with wide range of hand torque wrenches. Compact design. Single stage planetary gear in models up to 2,050 lbf.ft.

Overload safety mechanism on models TWG40, TWG60, TWG100.

Multiplication ratios from 4:1 to 28.5:1
