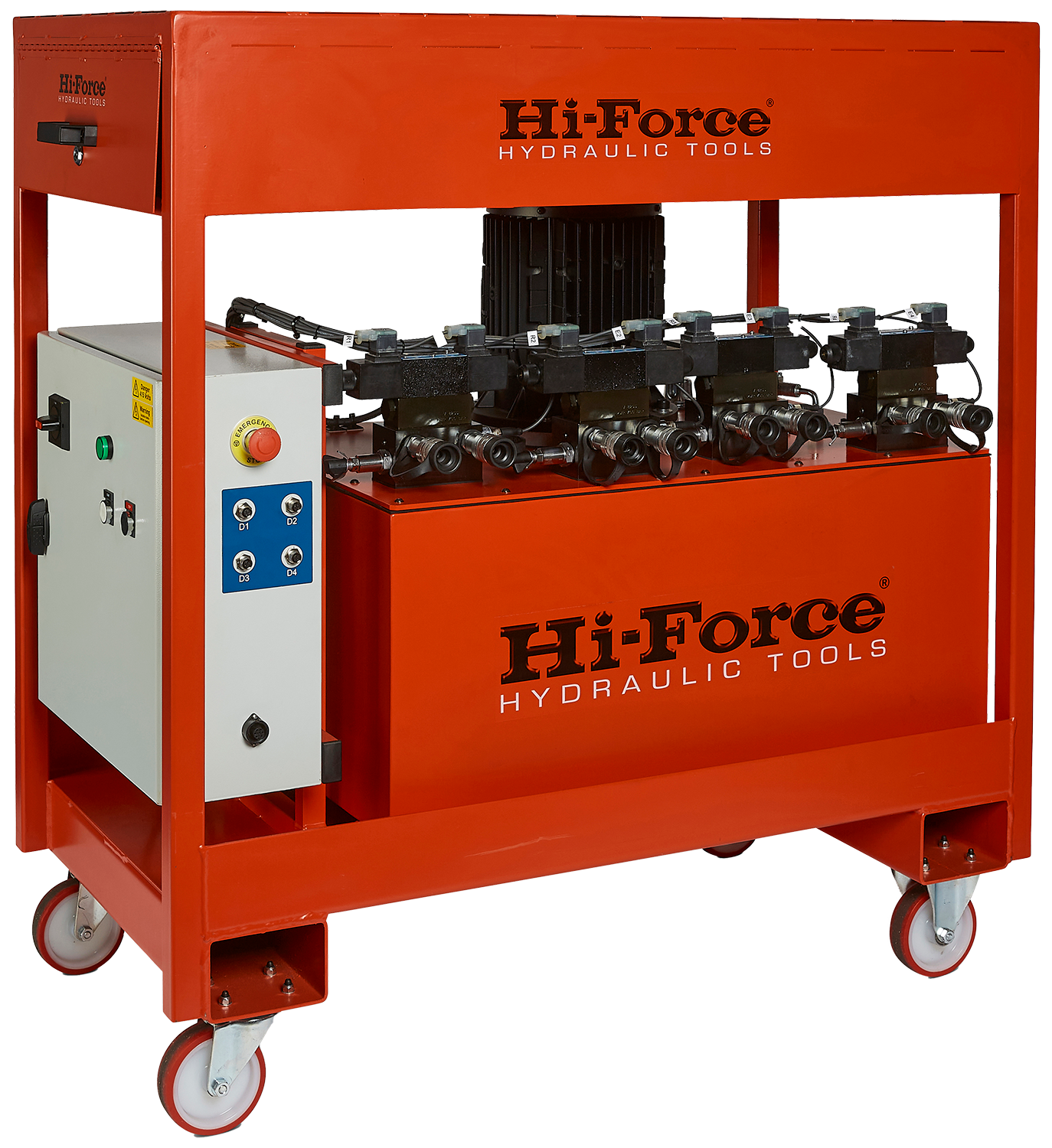

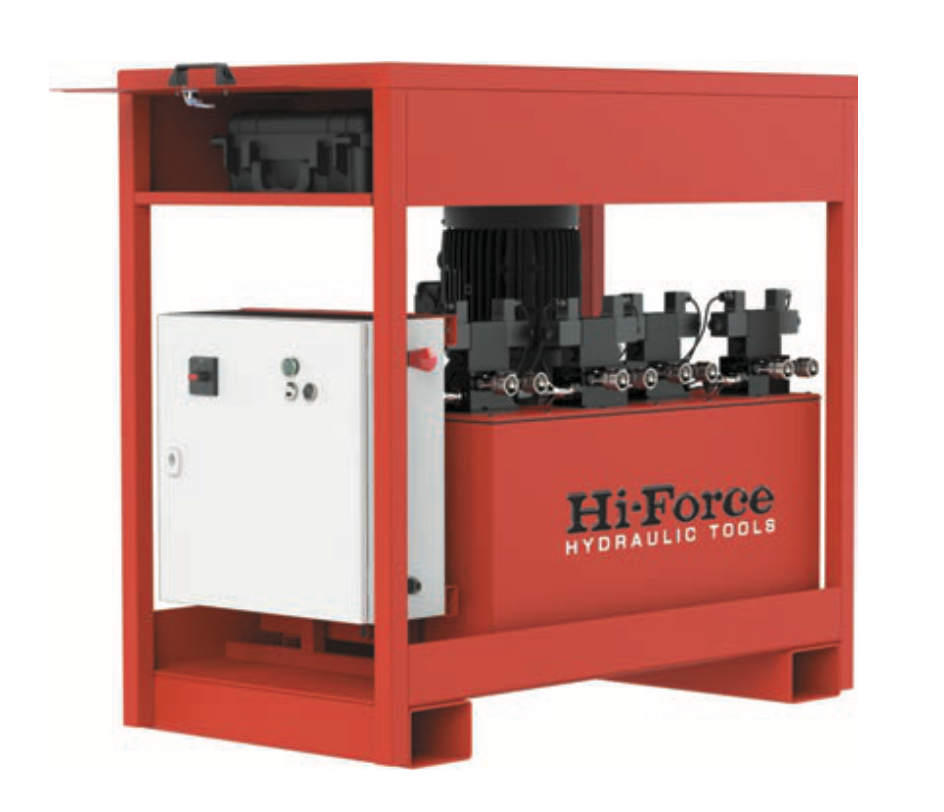

SLF - Synchronous Lifting System - Fixed Speed Drive

  • Working pressure 10,000 psi
  • Control from 4 to 8 lifting points
  • For use with standard single or double acting cylinders

Designed for precise lifting and lowering of heavy loads using multiple synchronized hydraulic cylinders. System comprises of heavy duty, three-phase electric motor, operator control panel to monitor up to 8 channels, and a robust framework for transportation and storage of the entire system.

Selection of outlet valves ranging from 4-outlet pump to 8-outlet pump with options of 3-way and 4-way valve configurations. 10,000 psi pressure transducers are fitted as standard on each outlet.

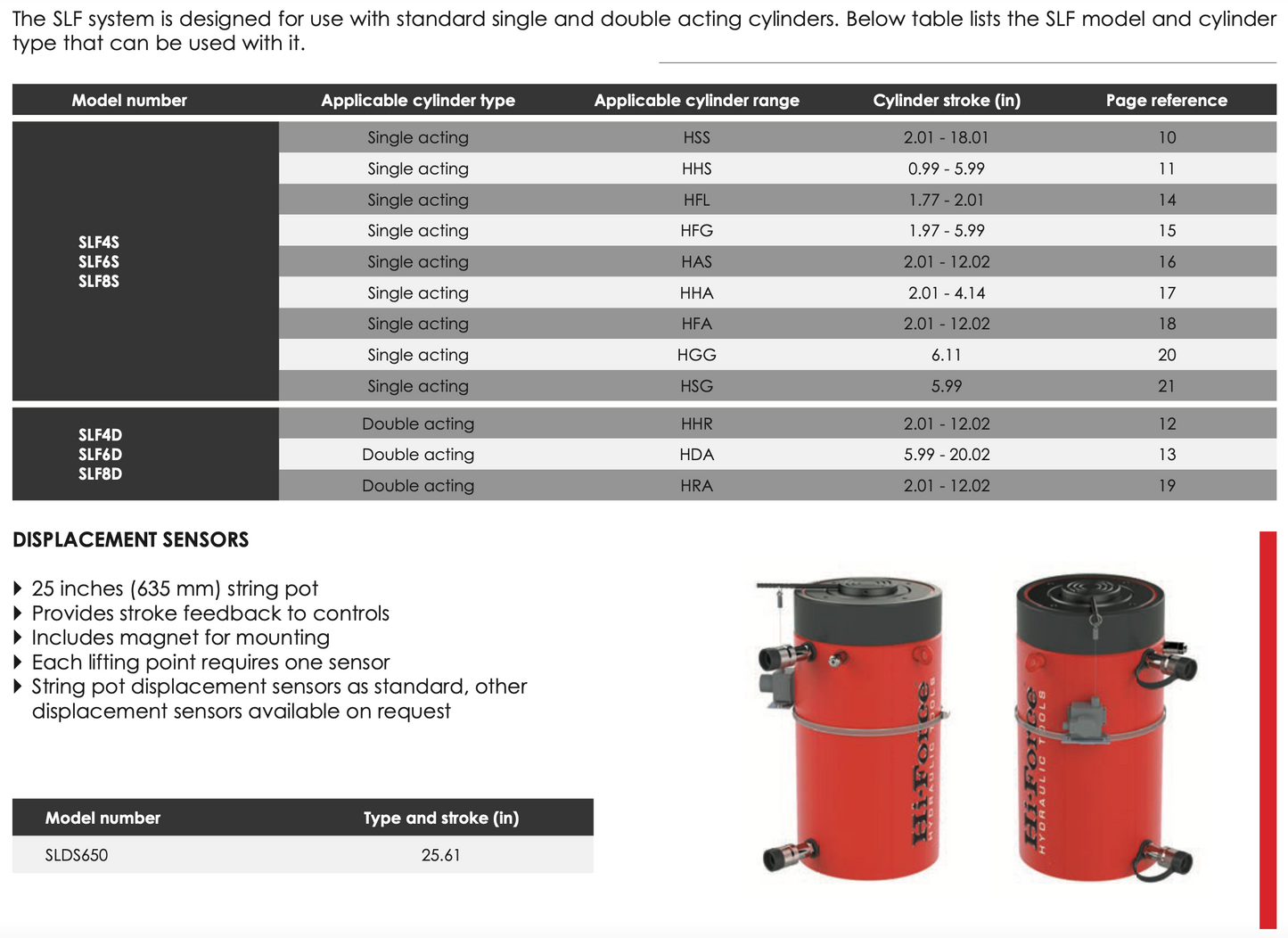

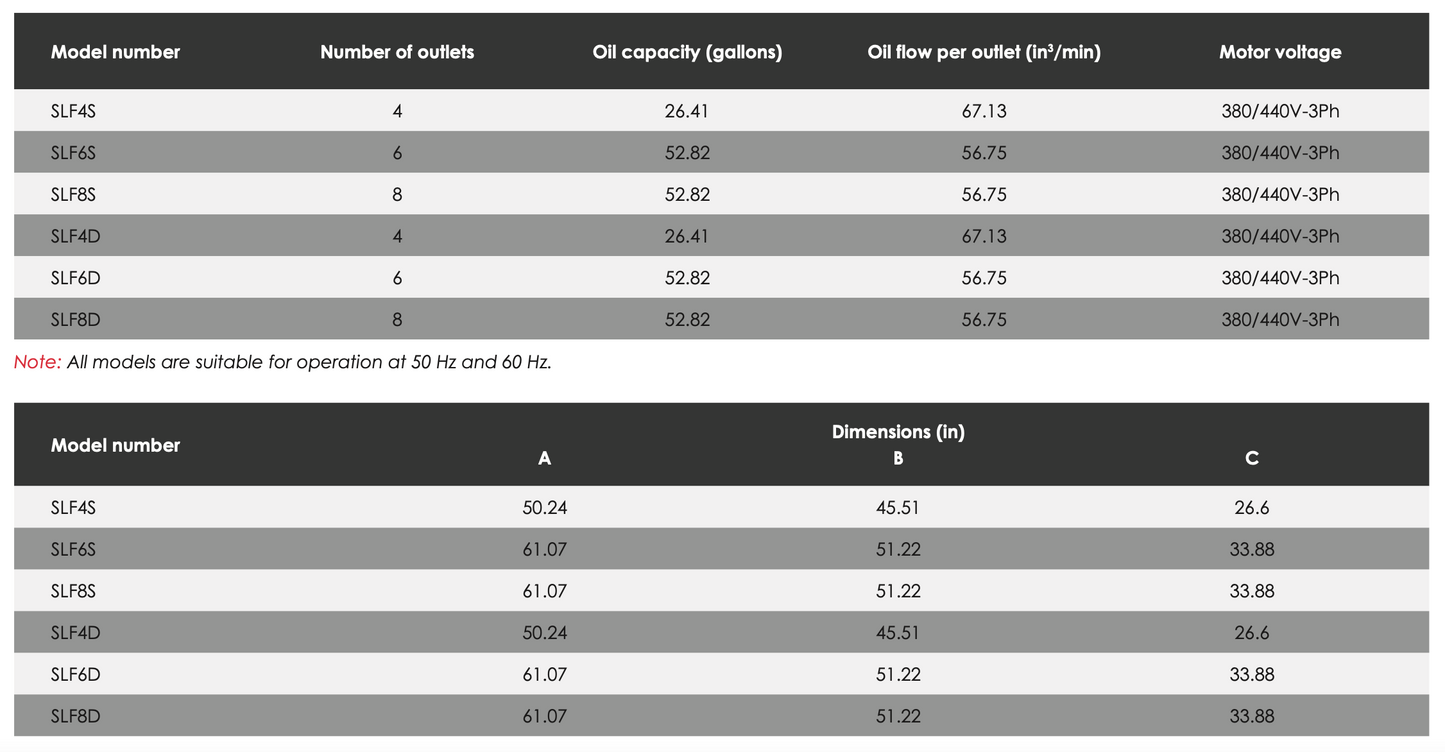

Reservoir capacity of 26.41 gallons on the 4-outlet pump and 52.82 gallons on the 6-outlet and 8-outlet pumps. Intuitive touch-screen controller with several display options including stroke, cylinder pressure, system pressure, and indicative weight of load. Specified for string pot displacement sensors as standard. Alternative sensor types available upon request.

Operating modes for the SLF include Manual, Pre-load, Automatic control, Depressurization, and Indicative weighing. System can be adapted to suit special lifting requirements. Customized systems can be tailored for unique application requirements.

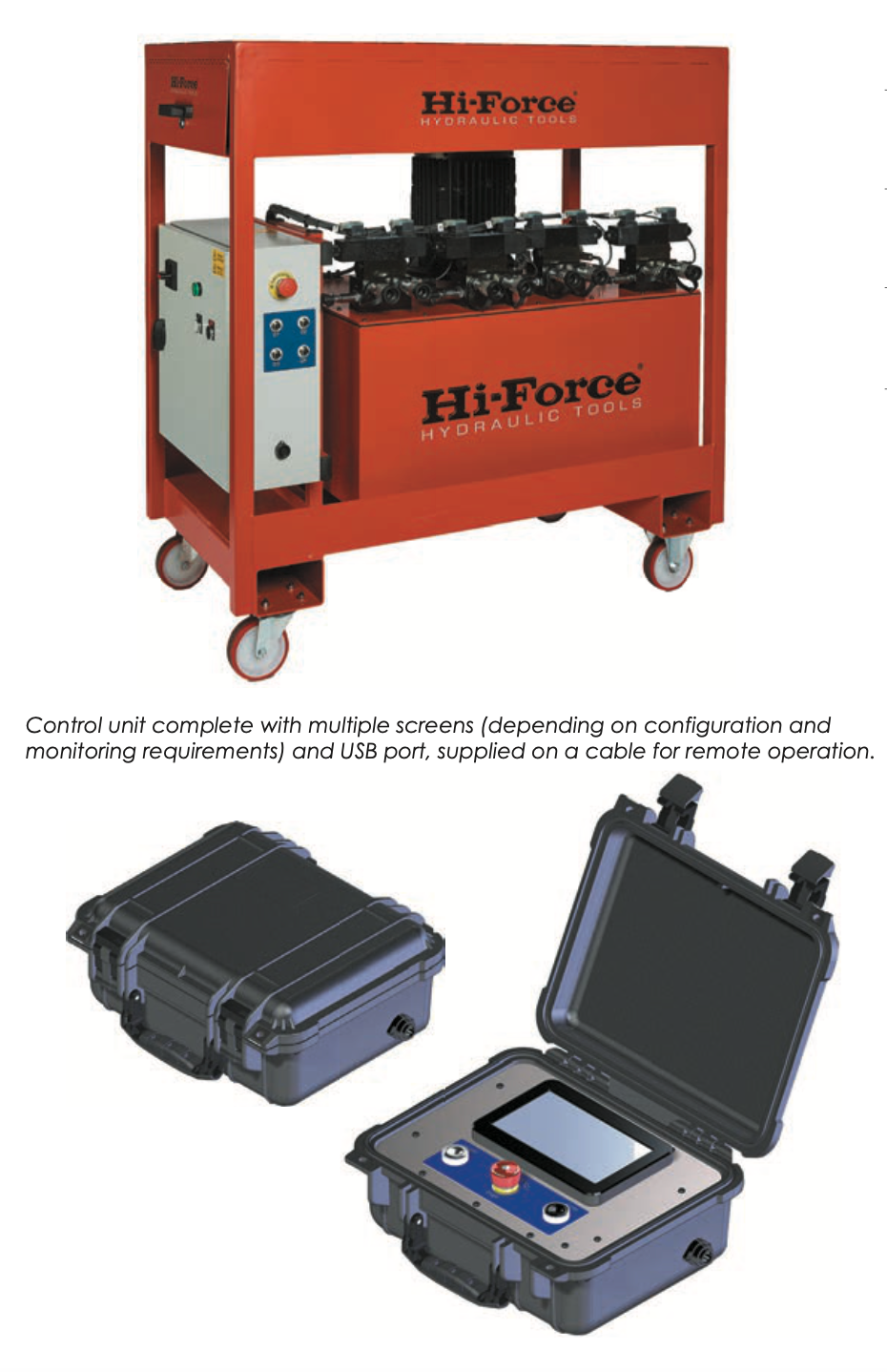

Control unit complete with multiple screens (depending on configuration and monitoring requirements) and USB port, supplied on a cable for remote operation.


How to Buy

Please contact us to ensure we send the model you need.
