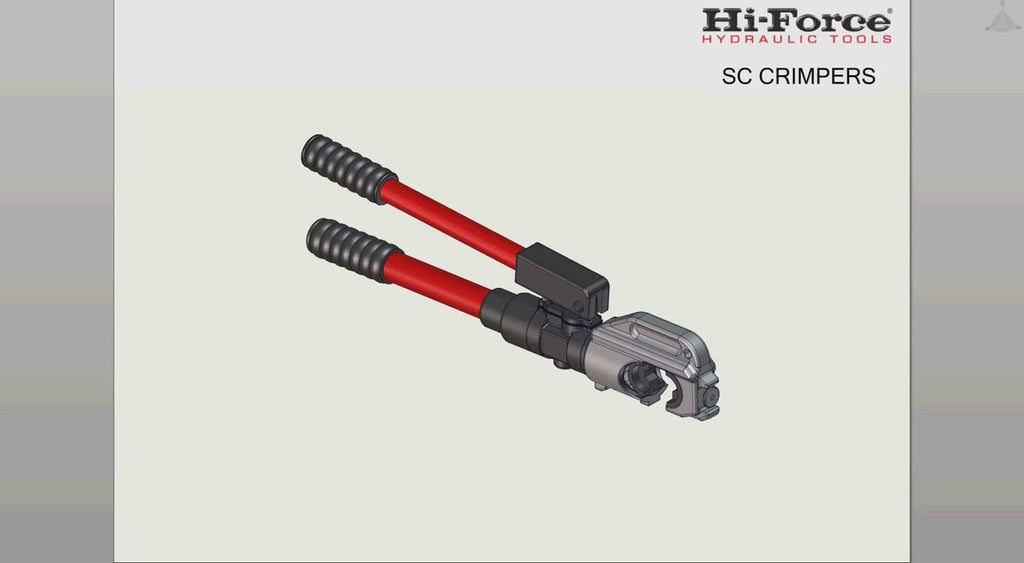

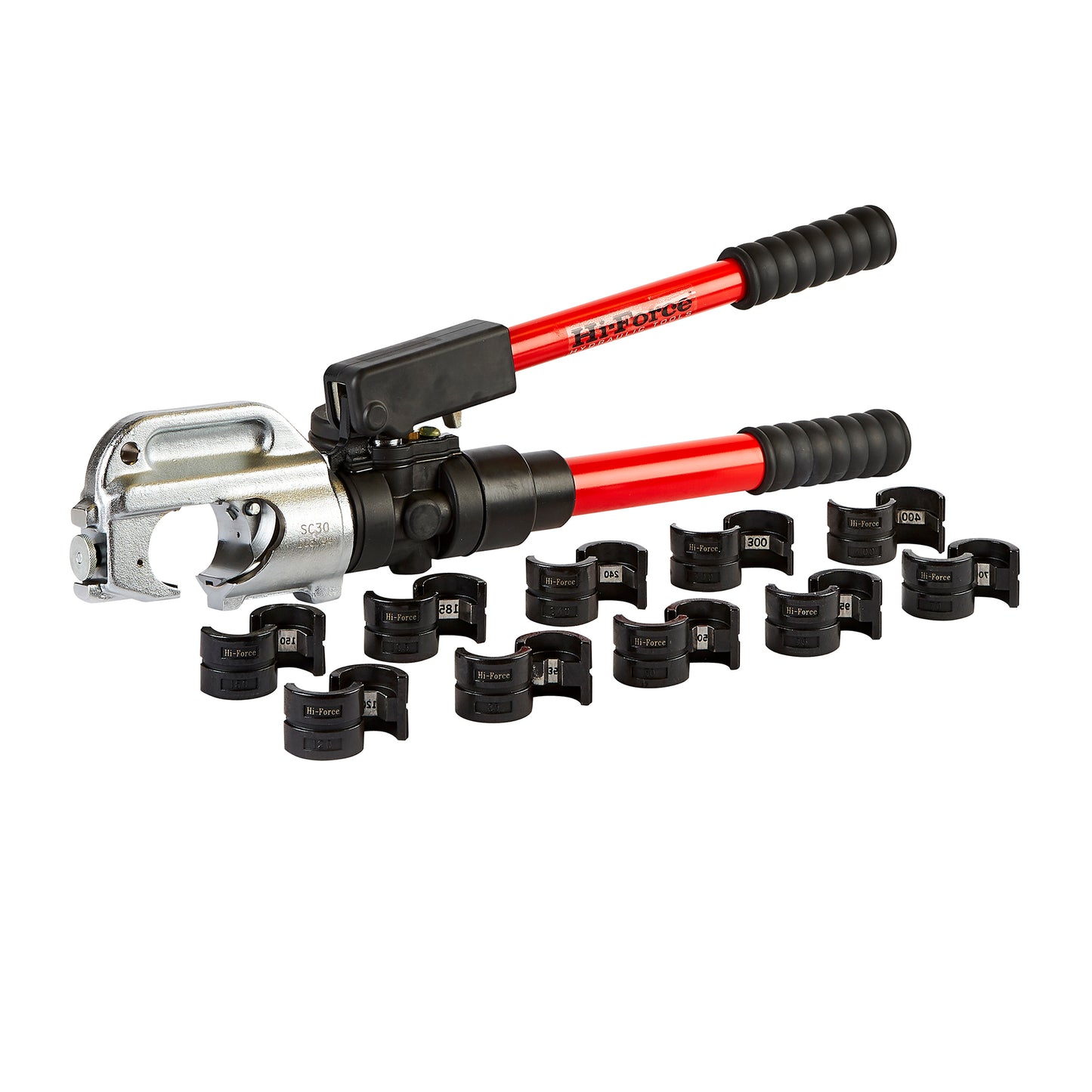

SC Self-Contained Cable Crimping Tools

• 6 models available

• Supplied with complete die set

• Choice of open jaw or parallel guide design


180° rotating head standard on all open jaw design models. Incorporates an integral hydraulic pump for easy operation. Automatic pump pressure release valve for correct pre-set crimping force. Ergonomic grip handles for reduced operator effort and ease of use. Supplied with standard die sets and carrying case.

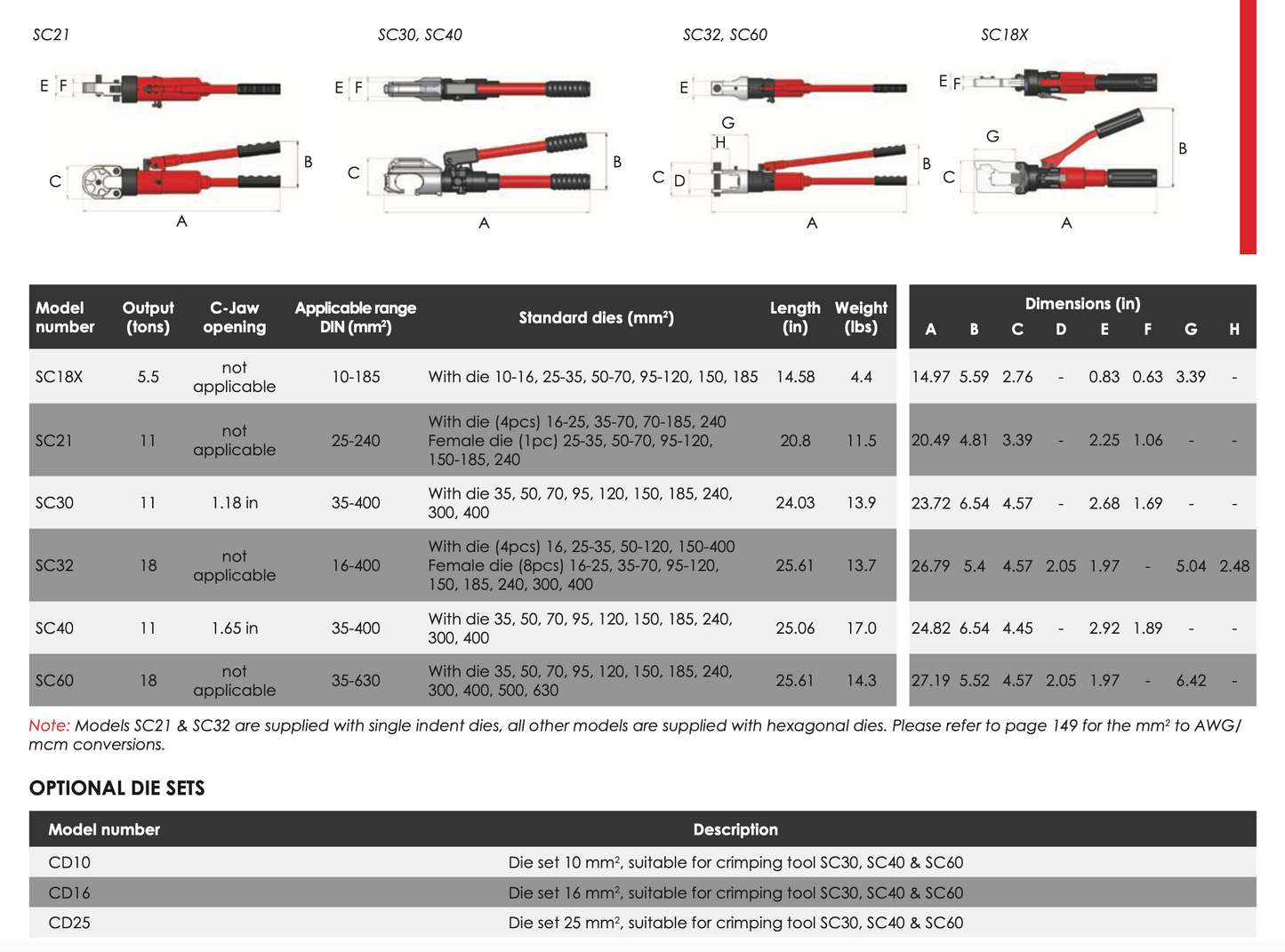

• Model SC18X is suitable for crimping non-insulated terminals up to 185 mm²
• Model SC21 is suitable for crimping connectors up to 240 mm²
• Models SC30, SC32 & SC40 are suitable for crimping connectors up to 400 mm²
• Model SC60 is suitable for crimping non-insulated terminals up to 630 mm²

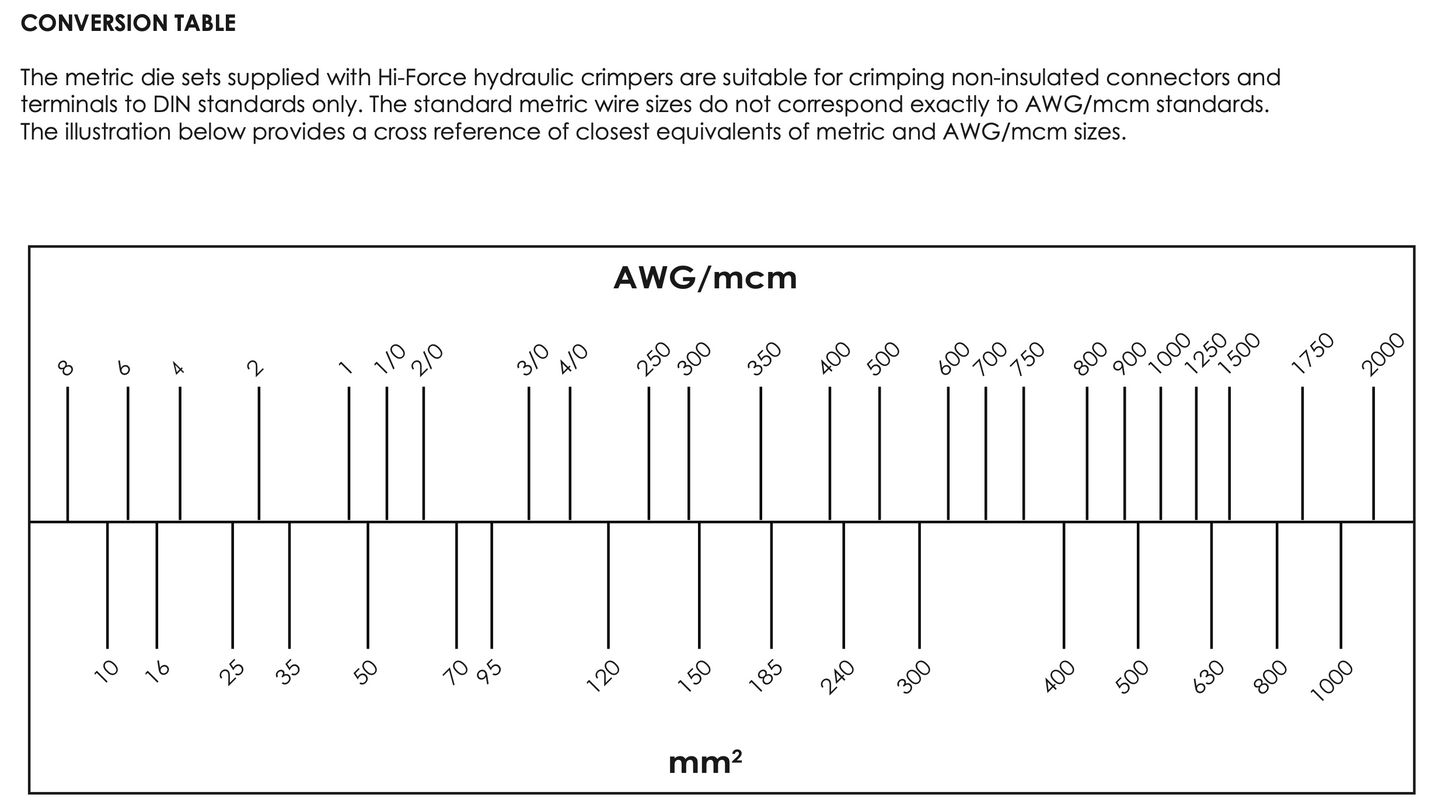

Note: Models SC21 & SC32 are supplied with single indent dies. All other models are supplied with hexagonal dies. Please see chart for the mm² to AWG/mcm conversions.
