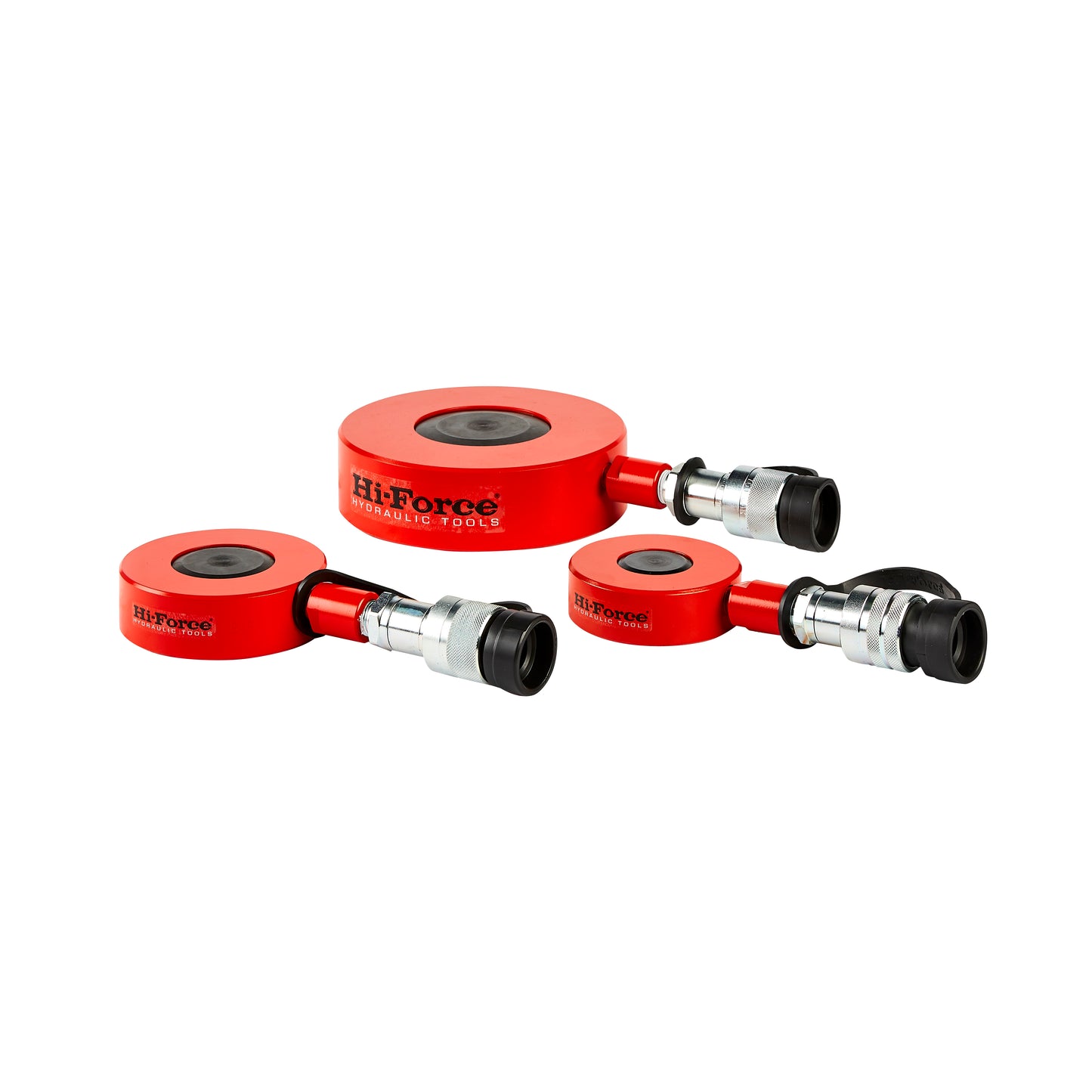

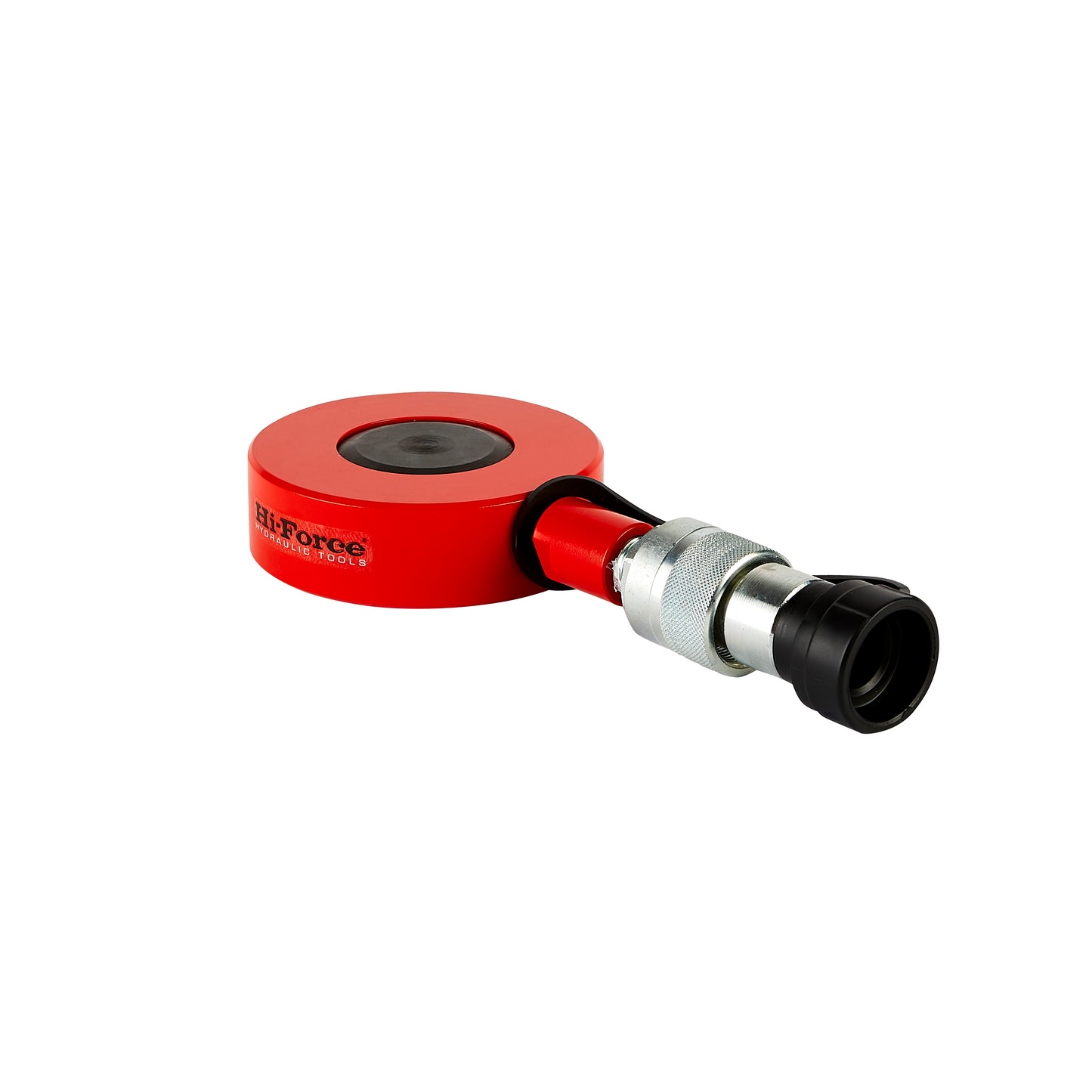

HVL - Single Acting, Very Low Height Pancake Cylinder

• Capacities from 11 to 115 tons.
• Stroke length 0.24 inches.
• Working pressure 10,000 psi.


Single acting, load return. Compact, very low height design for access in narrow spaces. Nitrocarburized piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Customized and special design cylinders are available on request.

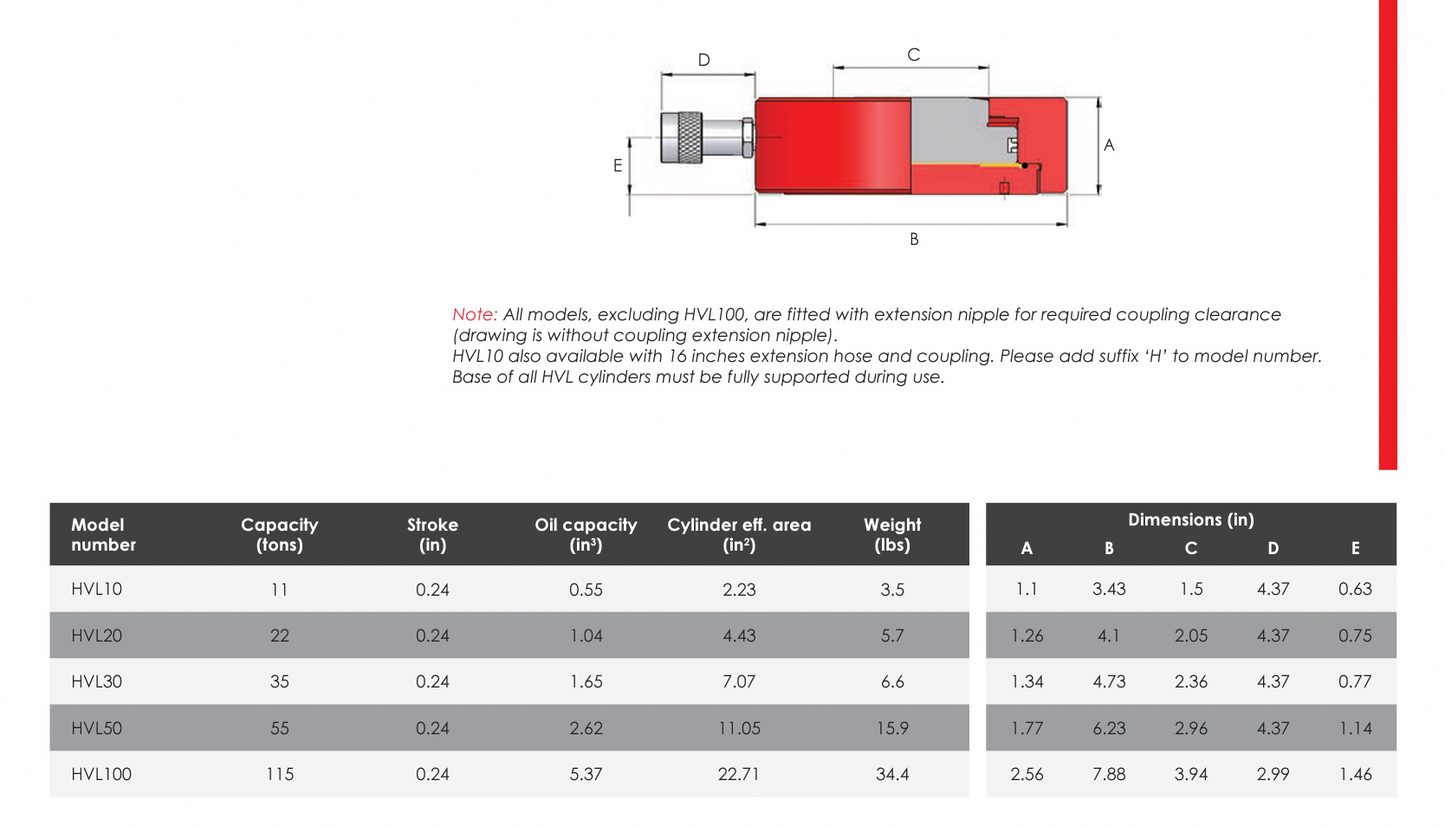

All models, excluding HVL100, are fitted with extension nipple for required coupling clearance (drawing is without coupling extension nipple).
HVL10 also available with 16 inches extension hose and coupling. Please add suffix ‘H’ to model number.

Base of all HVL cylinders must be fully supported during use.
