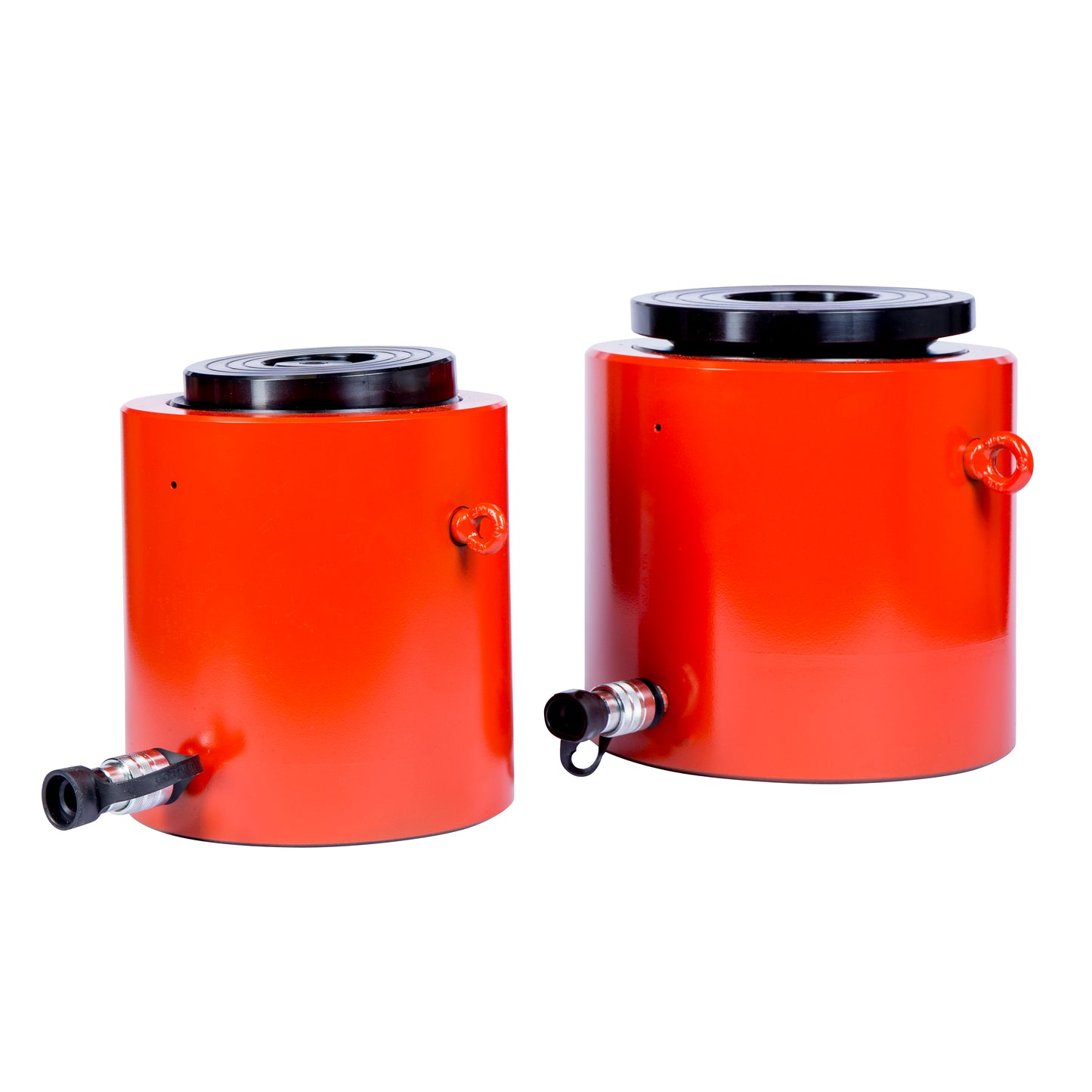

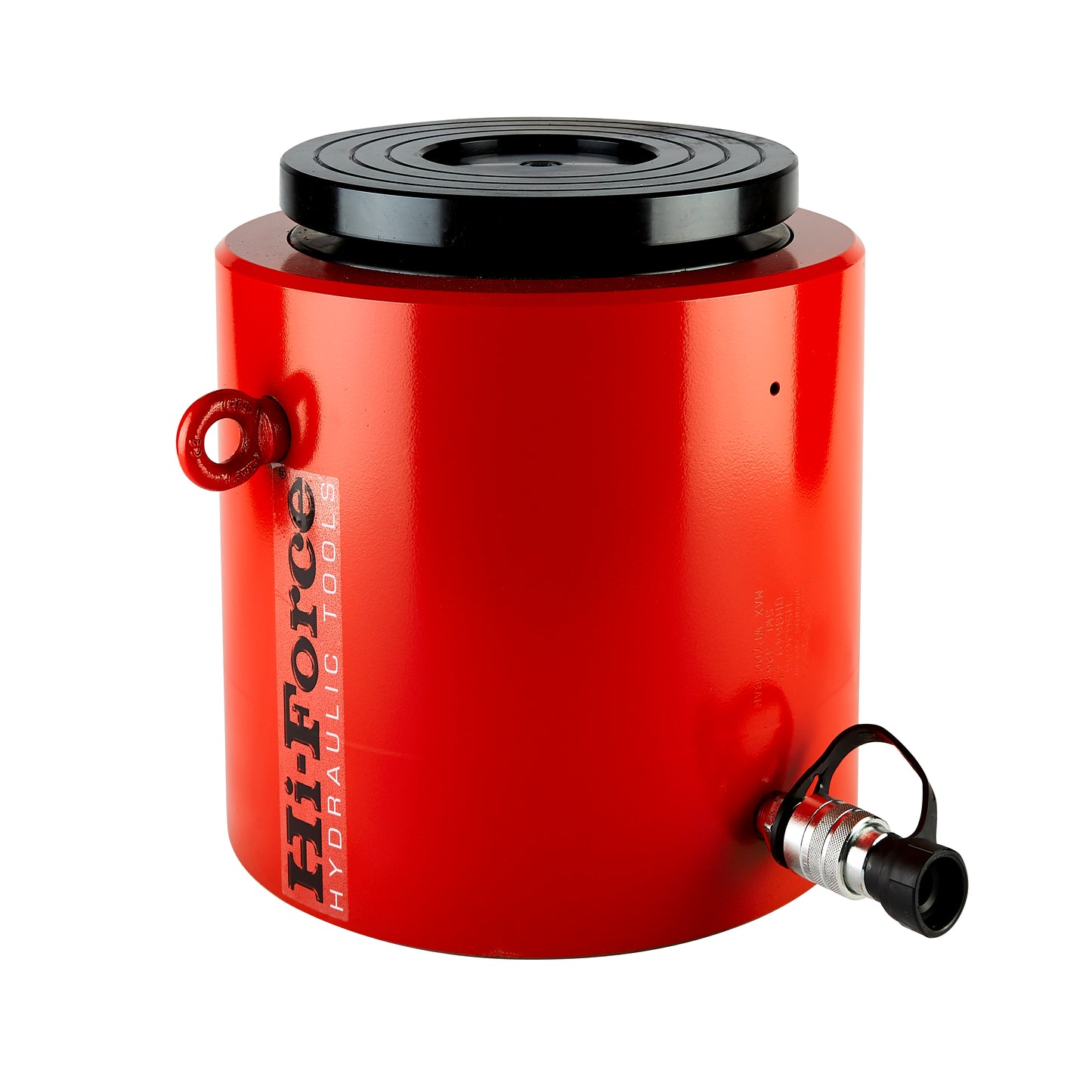

HSG - Single Acting Load Return High Tonnage Construction Cylinders

Regular price $3,260.00
Regular price Sale price $3,260.00
Sale Sold out
  • Capacities from 168 to 359 tons.
  • Stroke length 5.99 inches.
  • Working pressure 10,000 psi.

Single acting, load return. Heavy duty design for construction, civil  engineering and heavy fabrication applications. Overstroke restrictor port to prevent over extension of piston. Tilting saddle fitted as standard to reduce the risk of side loading. Nitrocarburized cylinder body and piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures.

Optional piston rod saddles. Customized and special design cylinders are available on request.

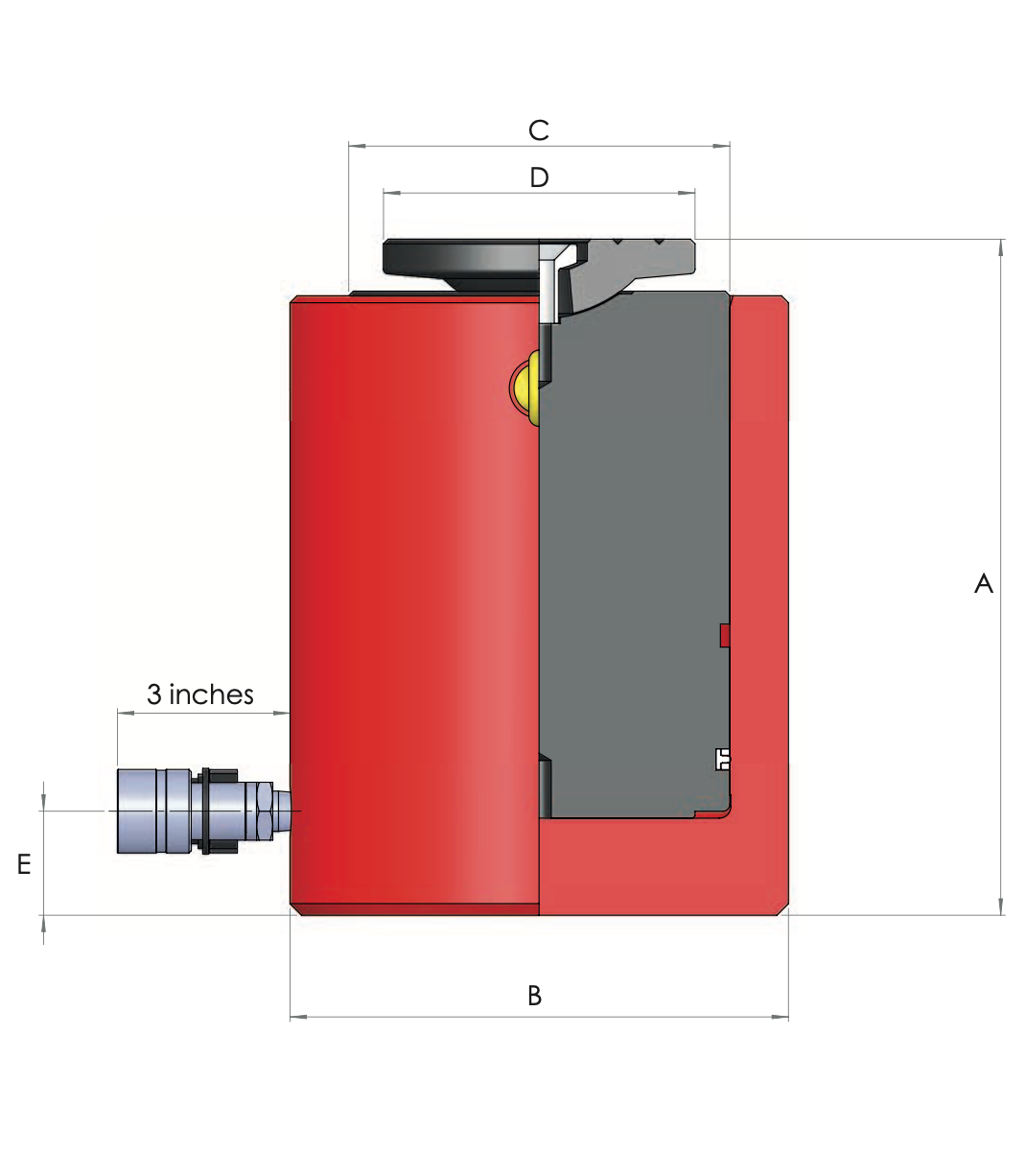

If specifying this cylinder for use with the SLF and SLV synchronous lifting systems and associated mounting kit, please consider the increase in dimension A (closed height).

hydraulic cylinder on job site

Cylinders for Every Job

If you don't see exactly what you need, contact us for the right solution.
