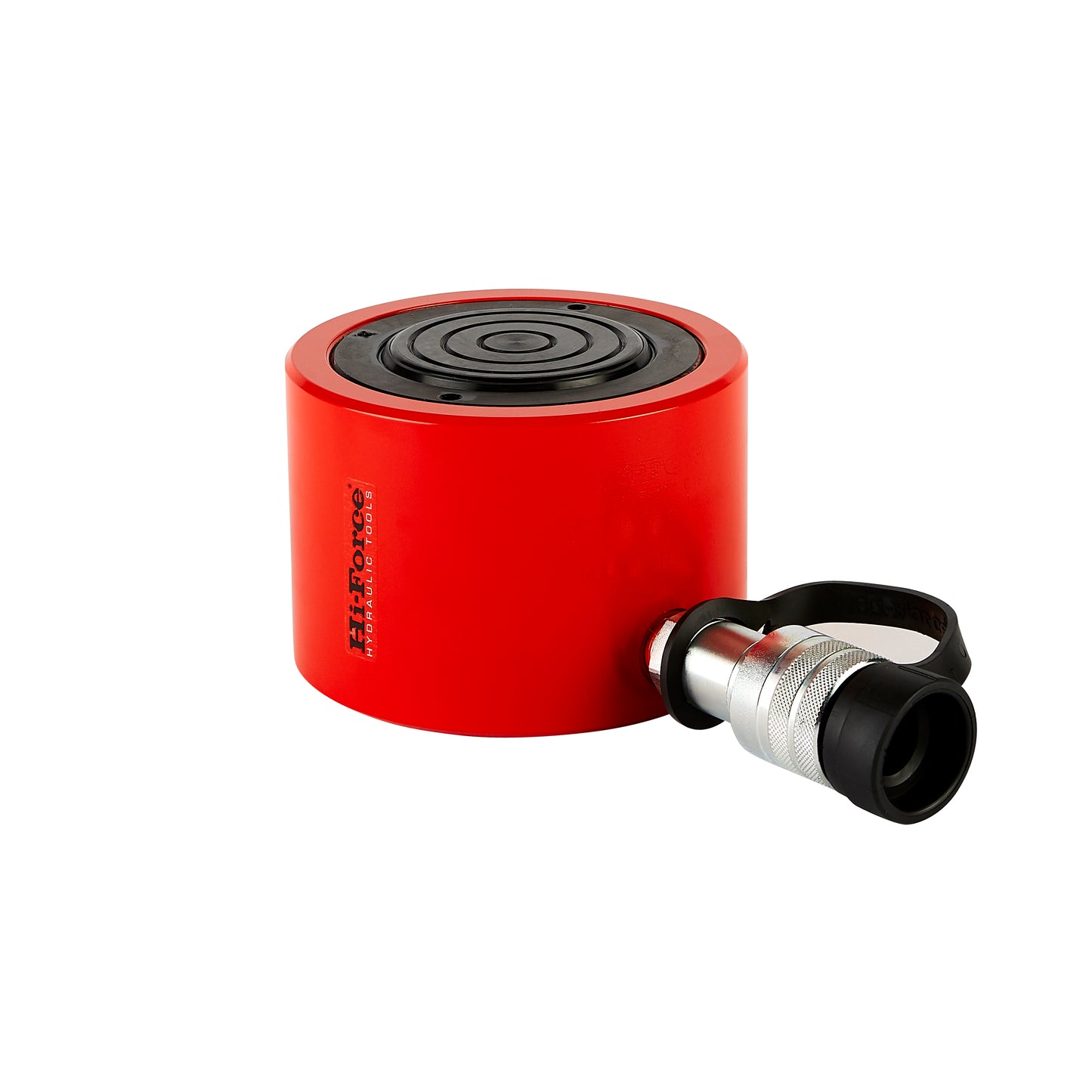

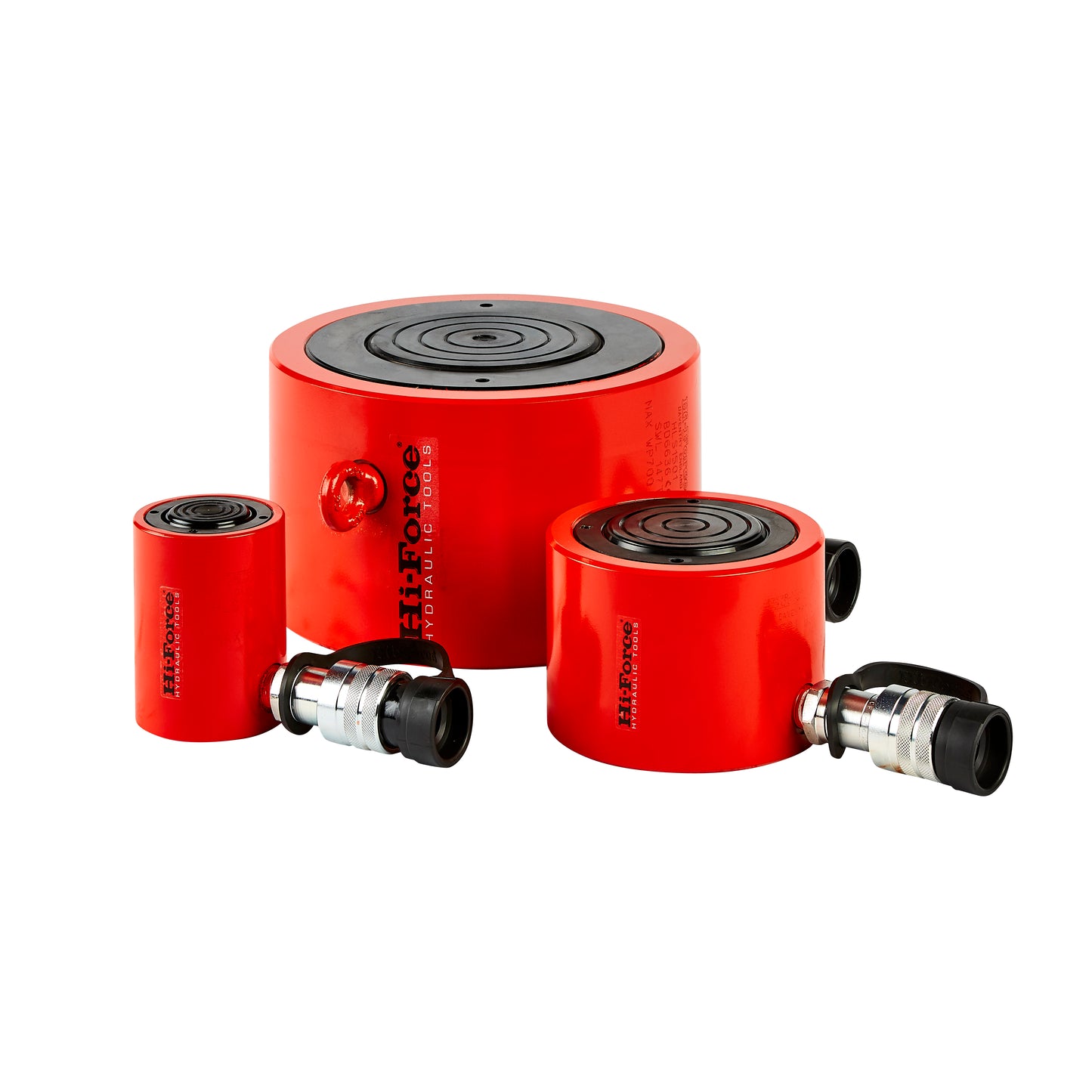

HLS - Single Acting Low Height Cylinders

$444.00
$444.00
Sale Sold out
Options
  • Capacities from 11 to 162 tons.
  • Stroke lengths from 0.99 to 2.36 inches.
  • Working pressure 10,000 psi.

Single acting, spring assisted return. Compact design with optimum stroke lengths. Nitrocarburized piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Customized and special design cylinders are available on request.

hydraulic cylinder on job site

Cylinders for Every Job

If you don't see exactly what you need, contact us for the right solution.
