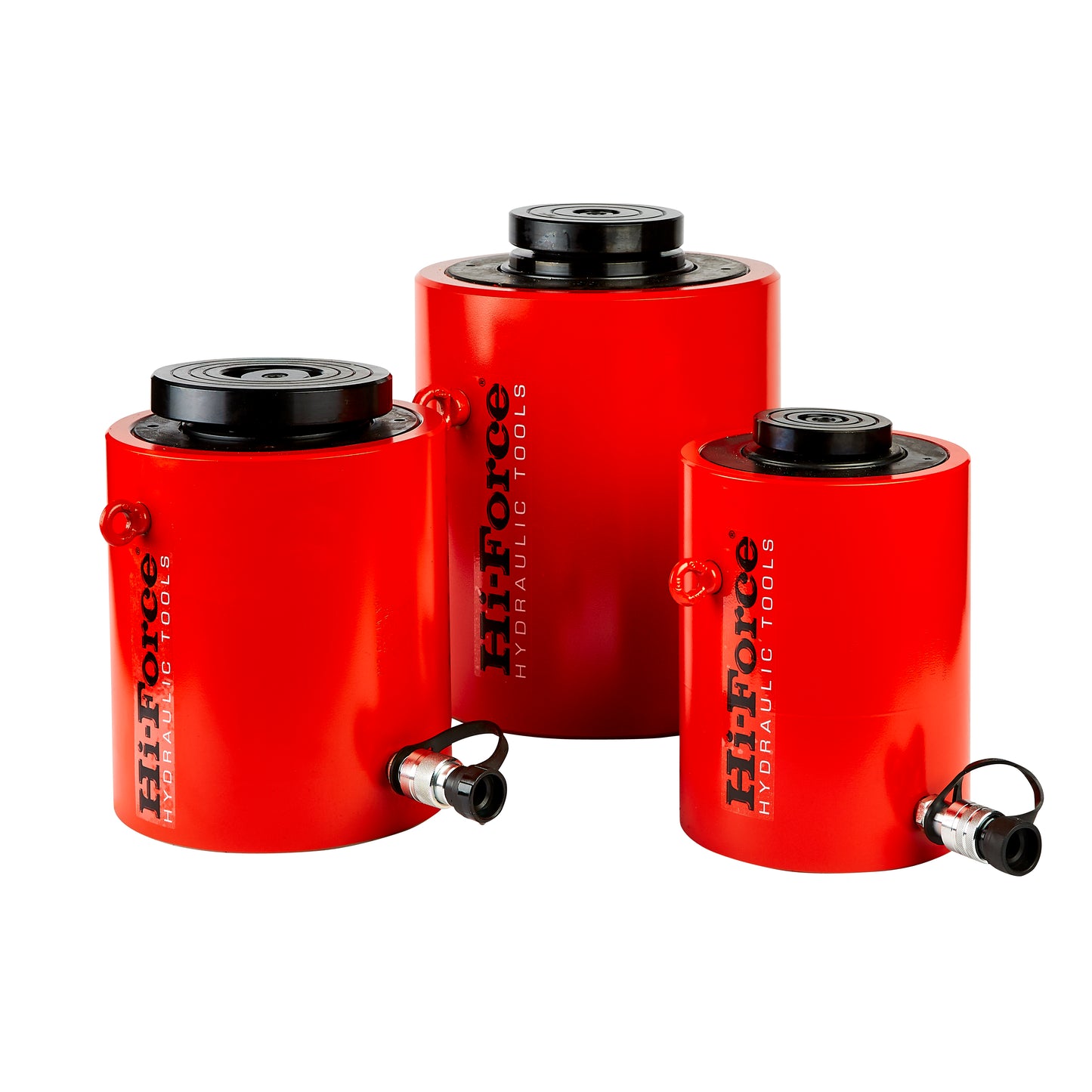

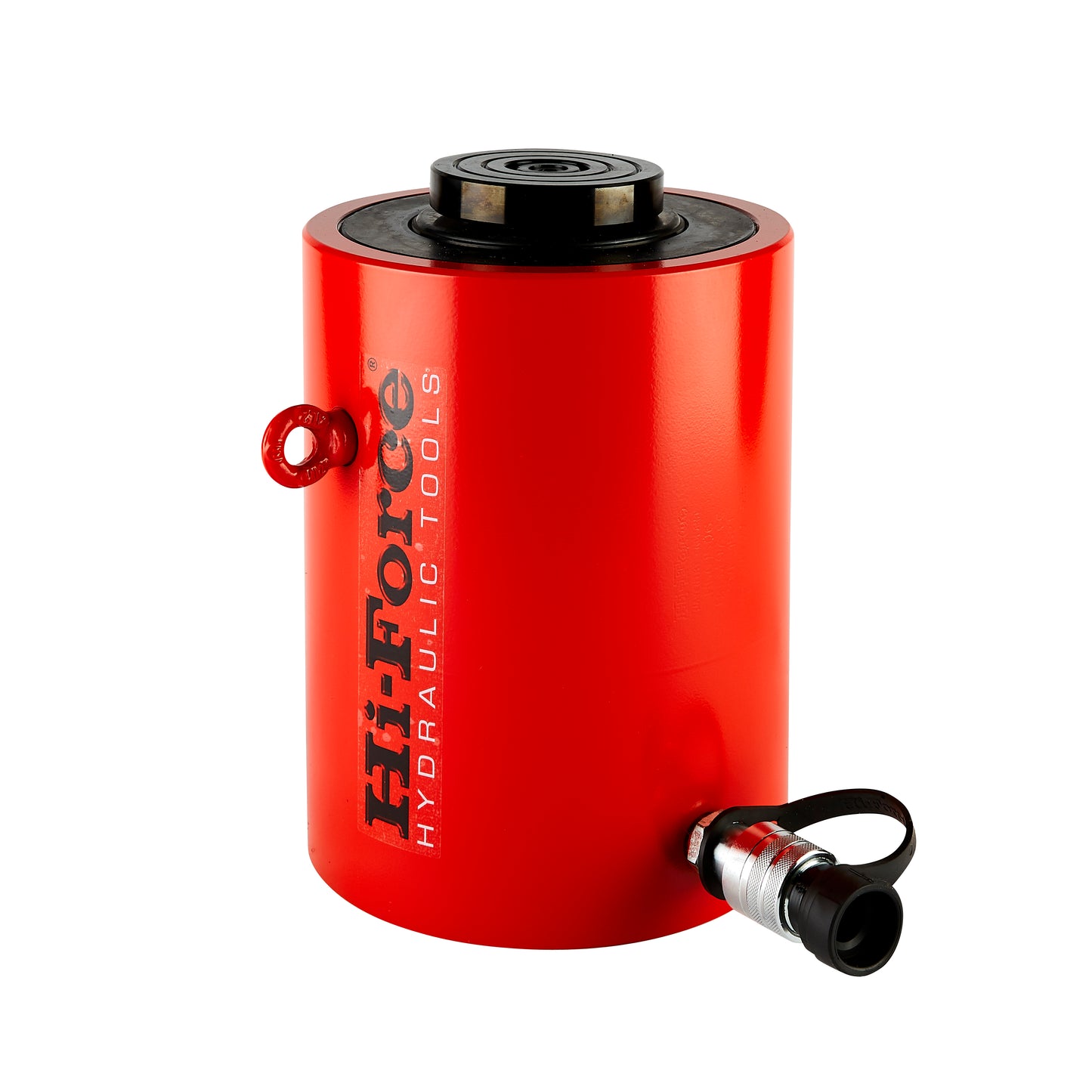

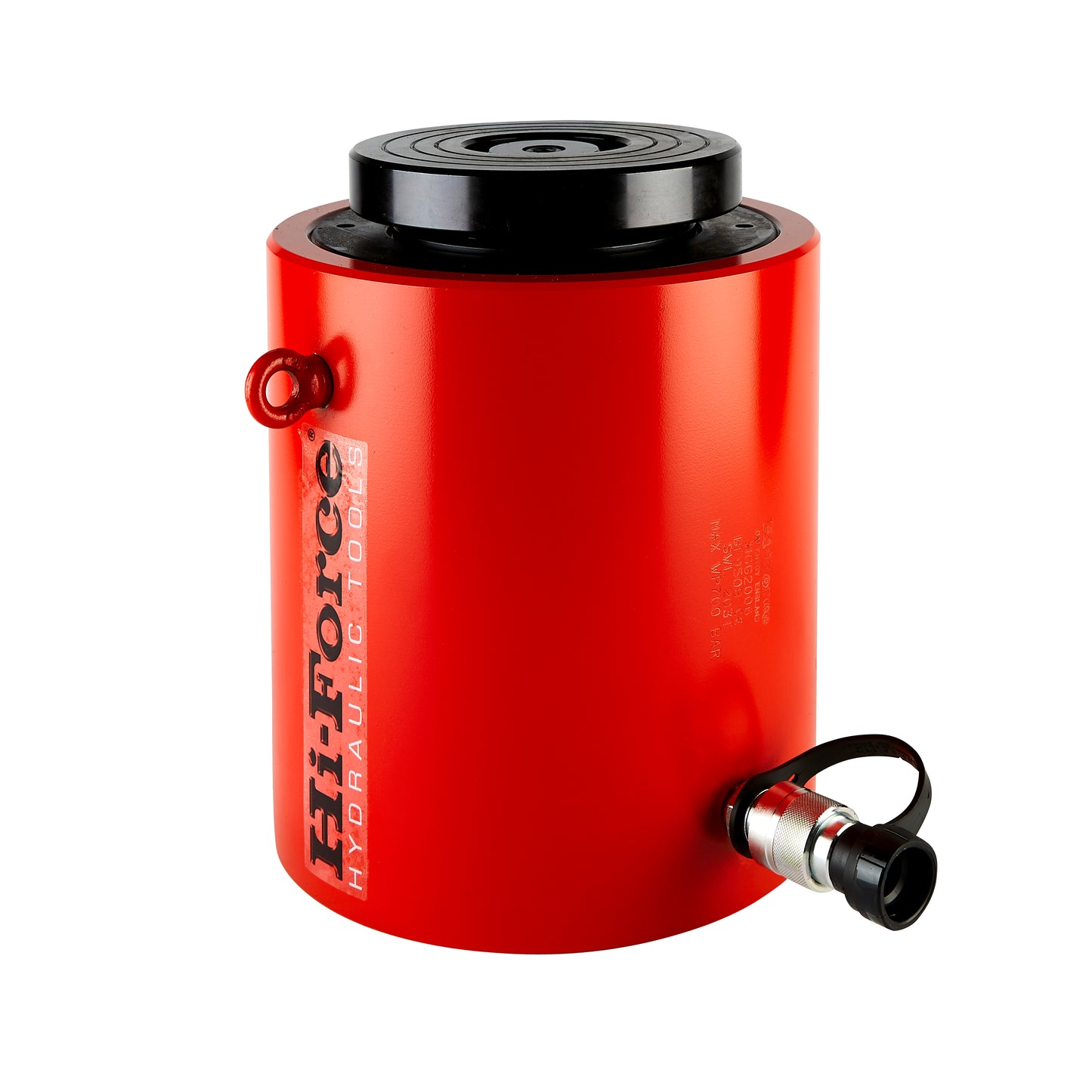

HGG - Single Acting Load Return High Tonnage Industrial Cylinders

• Capacities from 168 to 359 tons.
• Stroke length 6.11 inches.
• Working pressure 10,000 psi.

Single acting, load return. Heavy duty design for lifting and maintenance applications. Integral stop ring for piston stroke limitation. Tilting saddle fitted as standard to reduce the risk of side loading. Low friction bearing surfaces. Nitrocarburized piston rod for corrosion resistance. Anti-extrusion seals for improved performance at high pressures.

Optional piston rod saddles. Customized and special design cylinders are available on request.

If specifying this cylinder for use with the SLF and SLV synchronous lifting systems and associated mounting kit, please consider the increase in dimension A (closed height).
