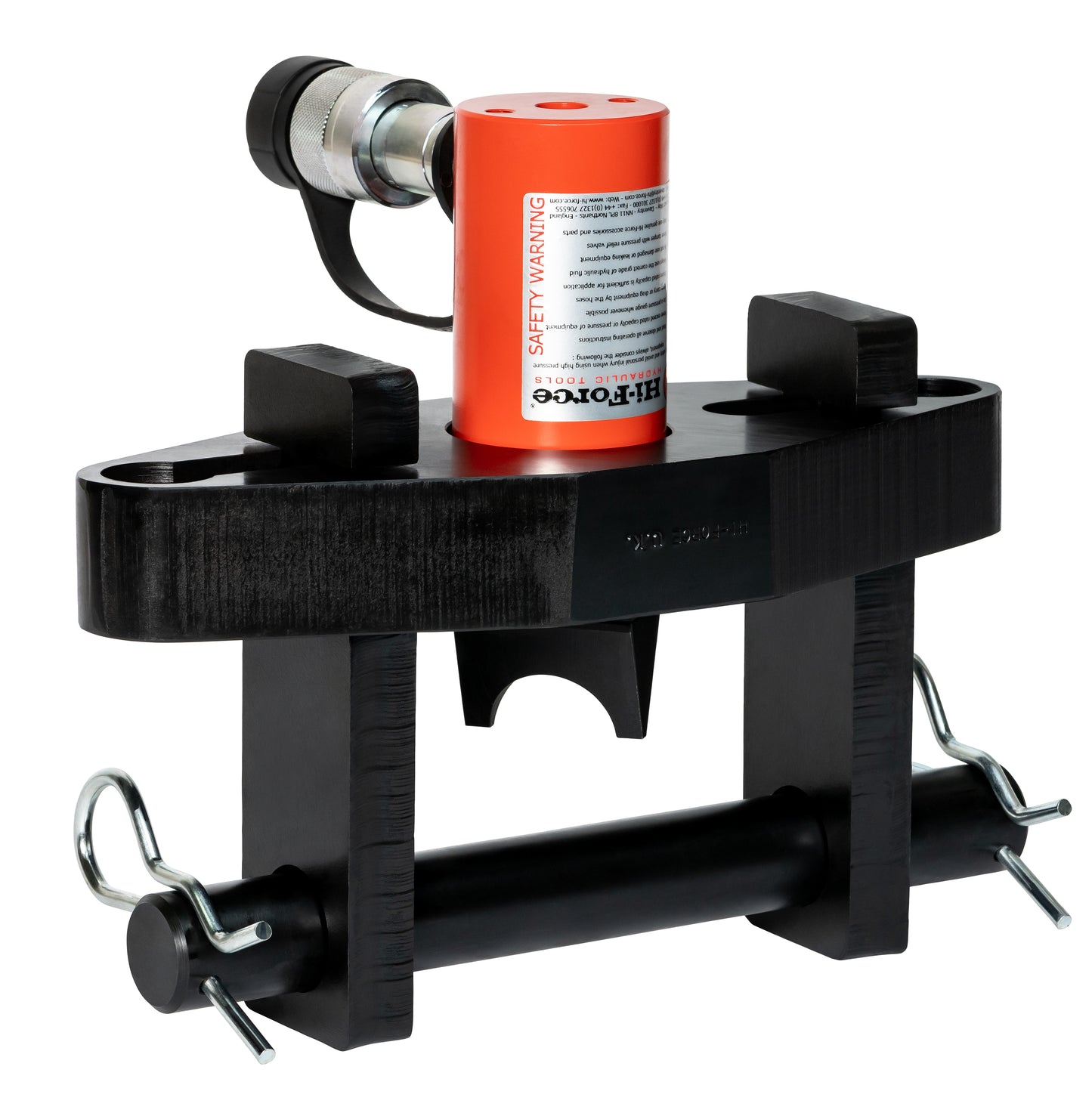

HFS-H Hydraulic Flange Spreaders

• Capacities from 5 to 11 tons
• Quick and easy to assemble on flange
• Working pressure 10,000 psi

Single acting, spring assisted return cylinder for fast and safe operation. Capable of opening flanges up to 2 x 2 ¼” thick. For flanges with maximum bolt size of 1 5⁄8” (41 mm). Spreading range from 2.4 to 8.83 inches. Lightweight, ergonomic design for ease of use.
