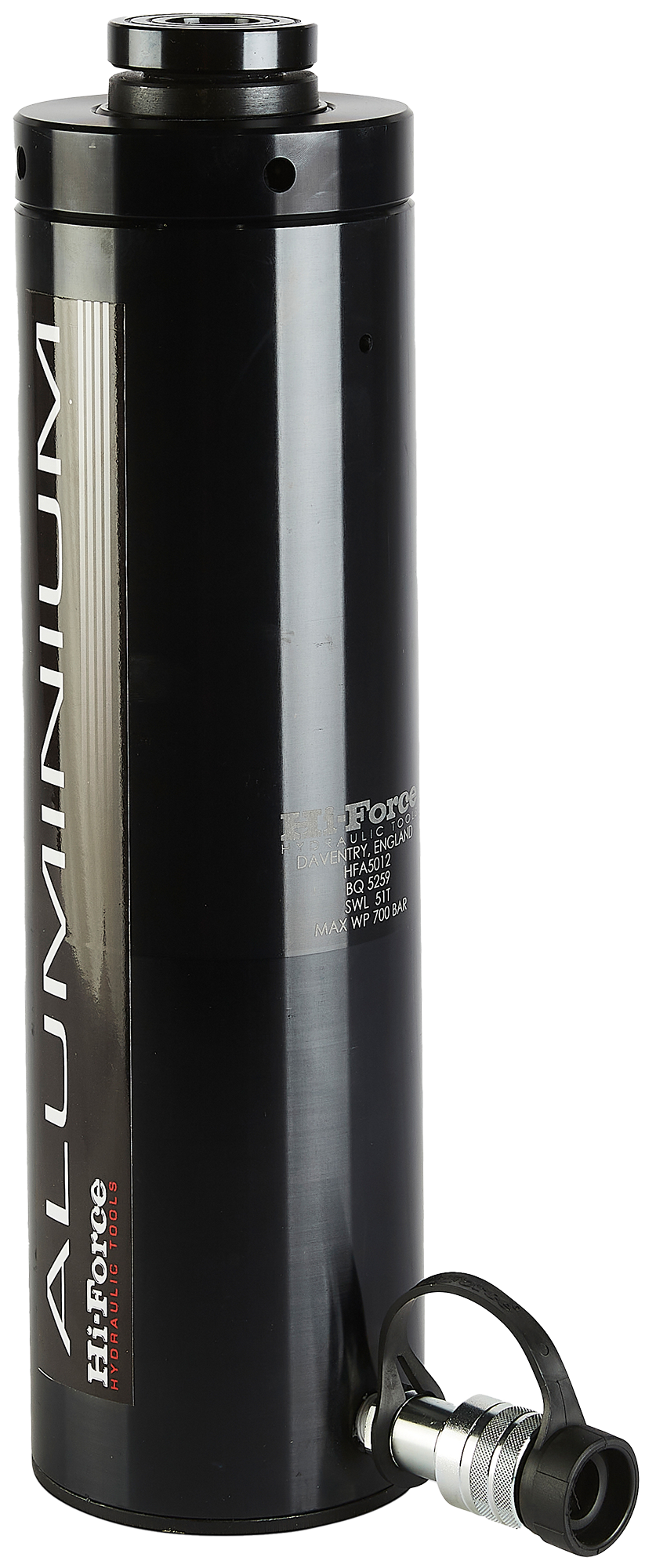

HFA - Single Acting Failsafe Lock Ring Aluminum Cylinders

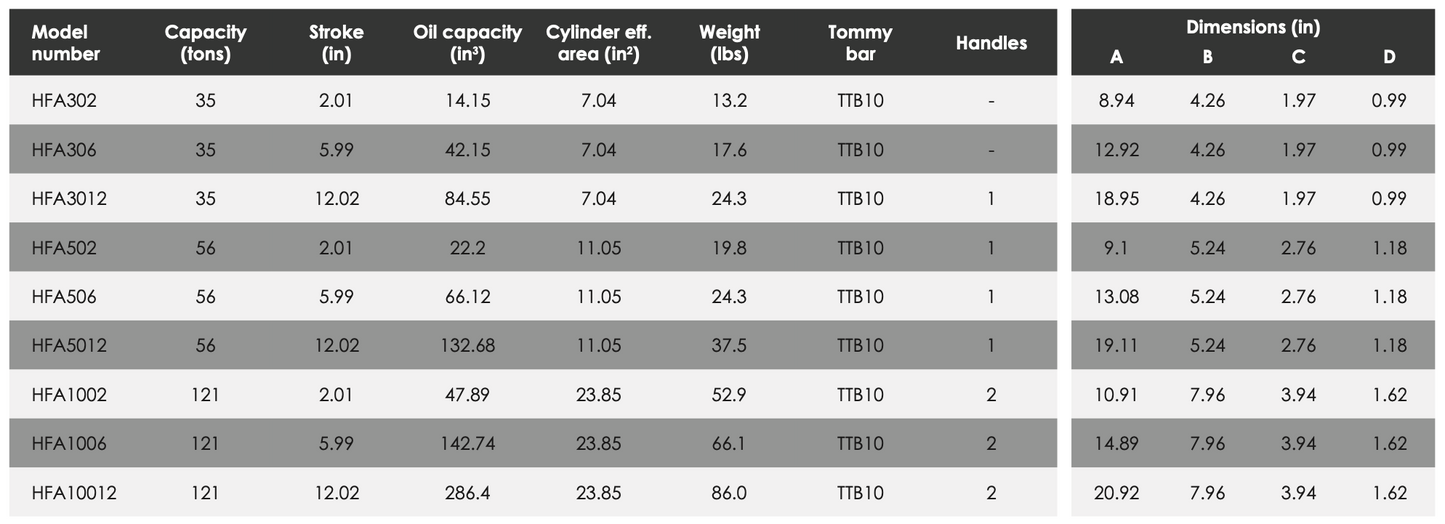

• Capacities from 35 to 121 tons.
• Stroke lengths from 2.01 to 12.02 inches.
• Working pressure 10,000 psi.

Lightweight aluminum cylinders for applications where weight and portability are of prime importance. Single acting, spring assisted return. Mechanical lock ring feature allows for load holding for extended periods. Hard anodized piston rod and cylinder for corrosion resistance and increased durability. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Tilting saddle fitted as standard on all models. Steel base plate fitted as standard. Integral stop ring.

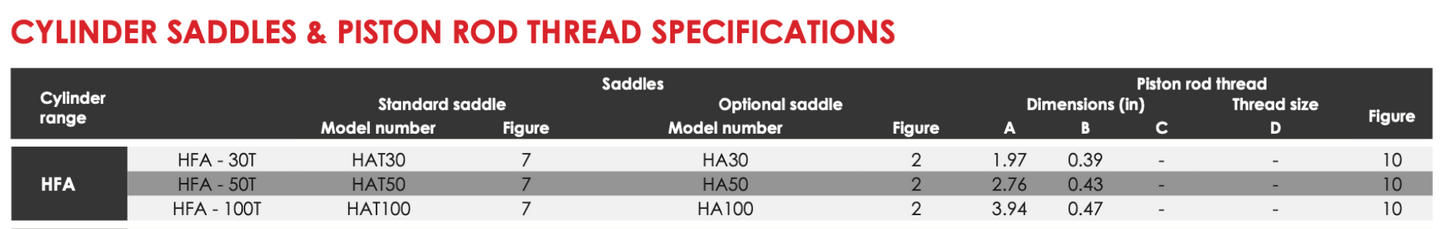

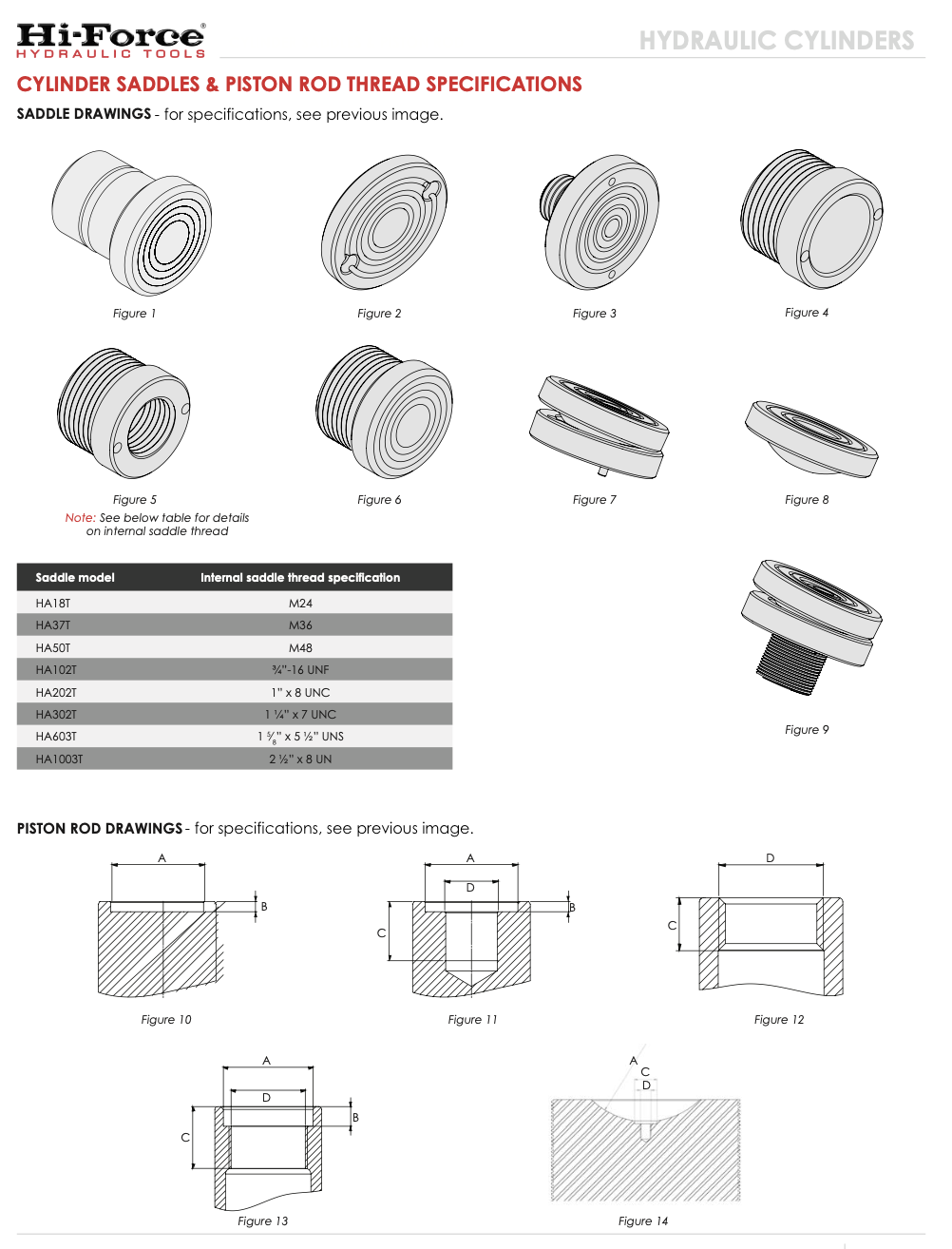

Optional piston rod saddles. Customized and special design cylinders are available on request.

Shop compatible tommy bar, model TTB10.

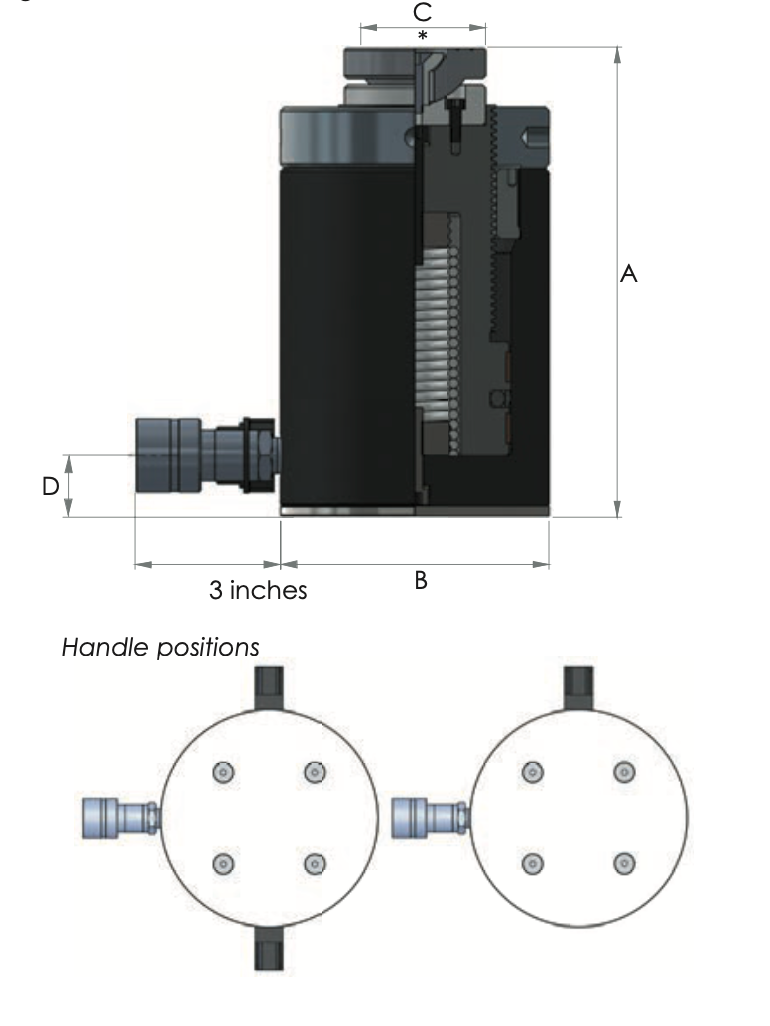

If specifying this cylinder for use with the SLF and SLV synchronous lifting systems and associated mounting kit, please consider the increase in dimension A (closed height).
