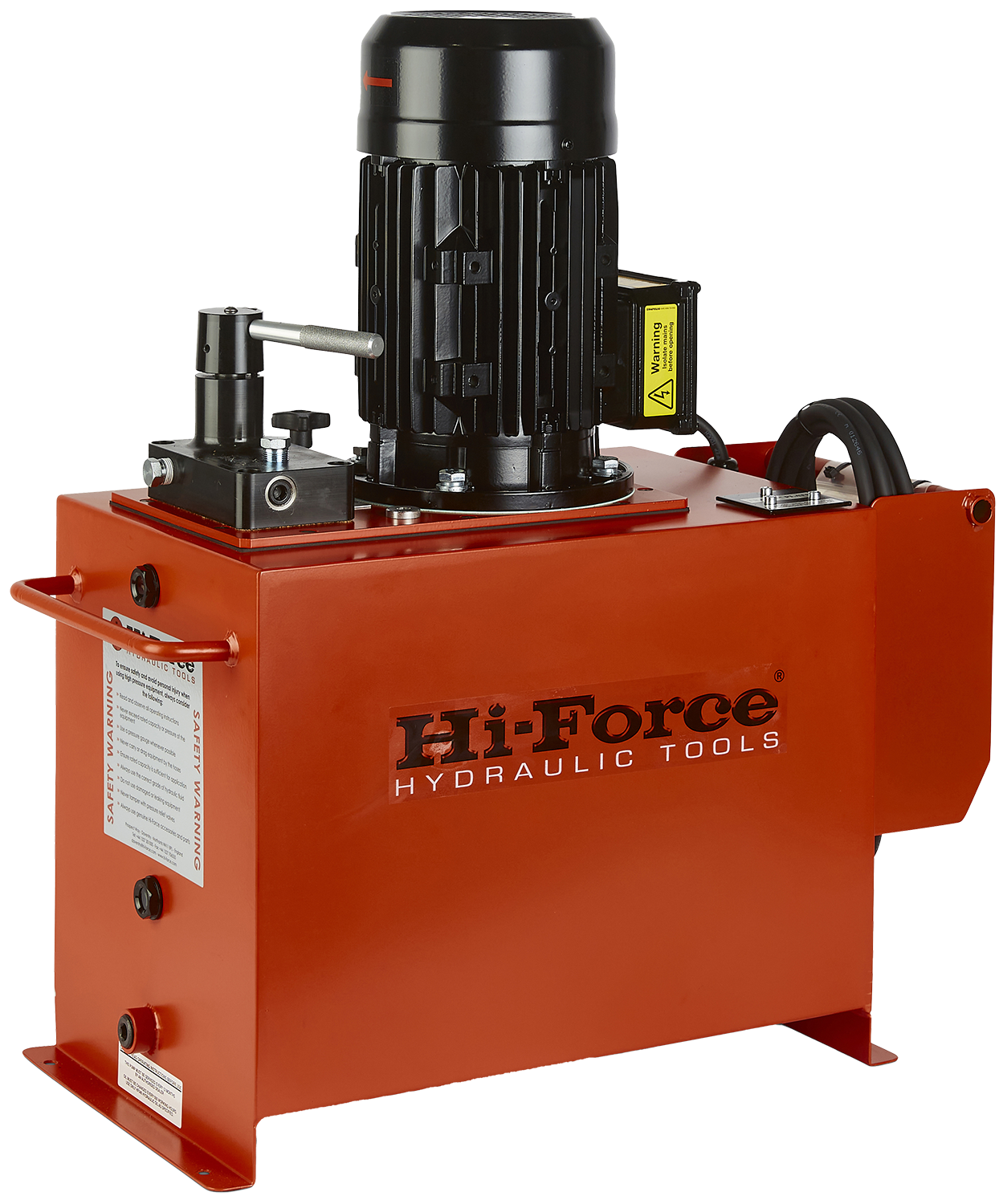

HEP5 - Electric Driven Pumps - Heavy Duty High Flow

Regular price $6,341.00
Regular price Sale price $6,341.00
Sale Sold out
  • Working pressure 10,000 psi
  • Two stage operation
  • Choice of 10.56 or 15.84 gallon oil reservoir

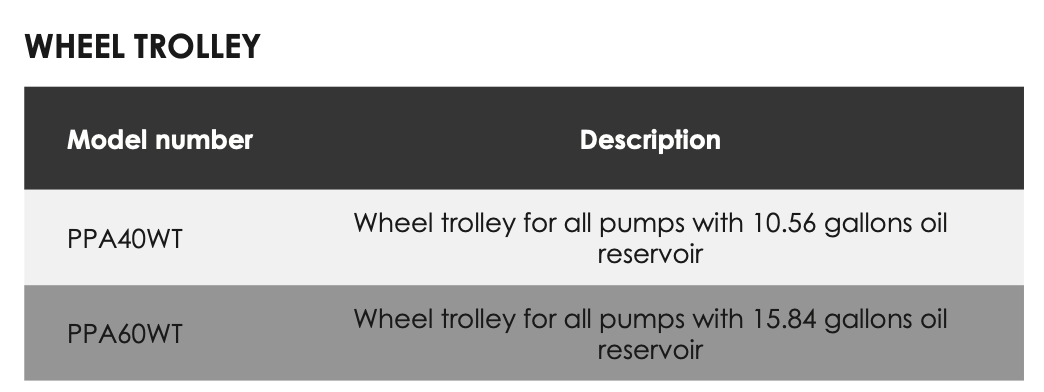

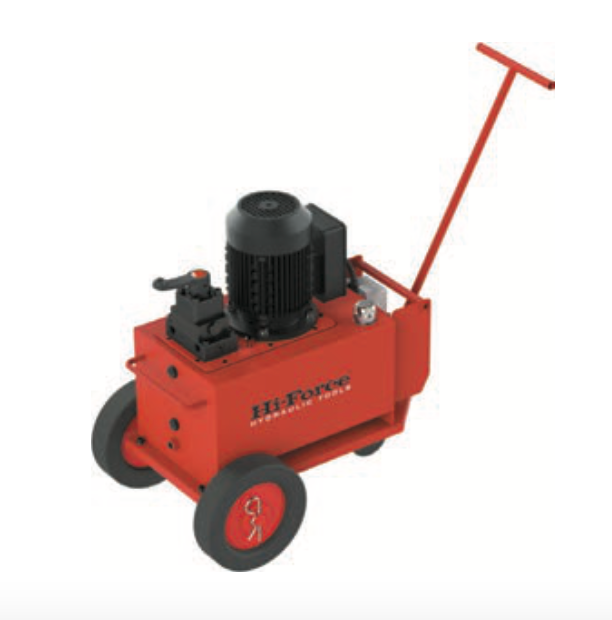

Shop factory-fitted wheel trolleys for HEP5 pumps.

380/440 volt electric motors available as standard. Choice of 2, 3 or 4-way manual control valves with load holding feature on 3 & 4-way versions. Externally adjustable pressure relief for pressure settings up to 10,000 psi. Completely enclosed fan cooled low noise electric motors.

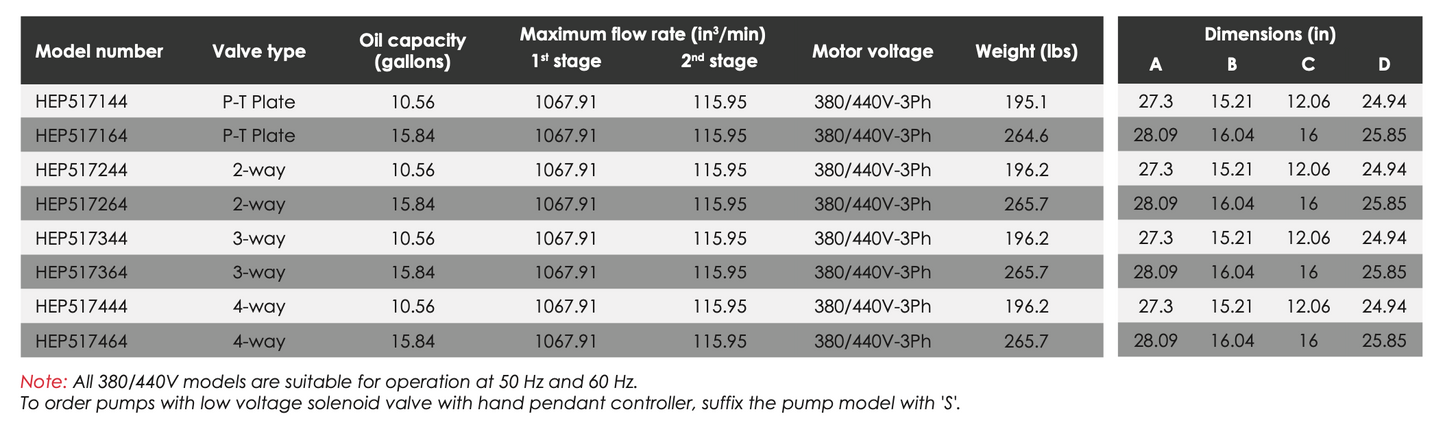

  1. All 380/440V models are suitable for operation at 50 Hz and 60 Hz.
  2. To order pumps with low voltage solenoid valve with hand pendant controller, add an "S" to the pump model number.
  3. Optional wheel trolley available: shop factory-fitted wheel trolleys.
