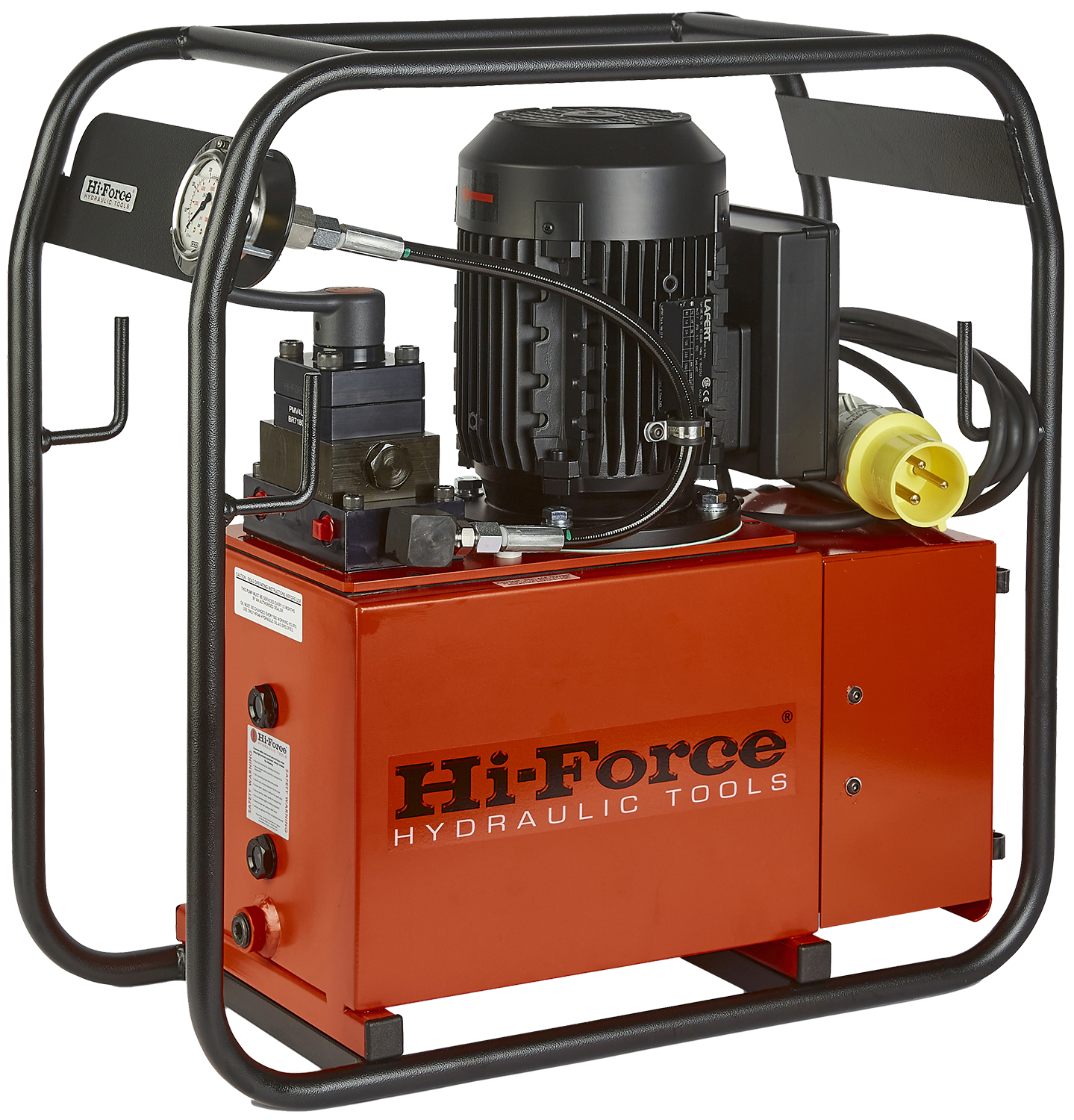

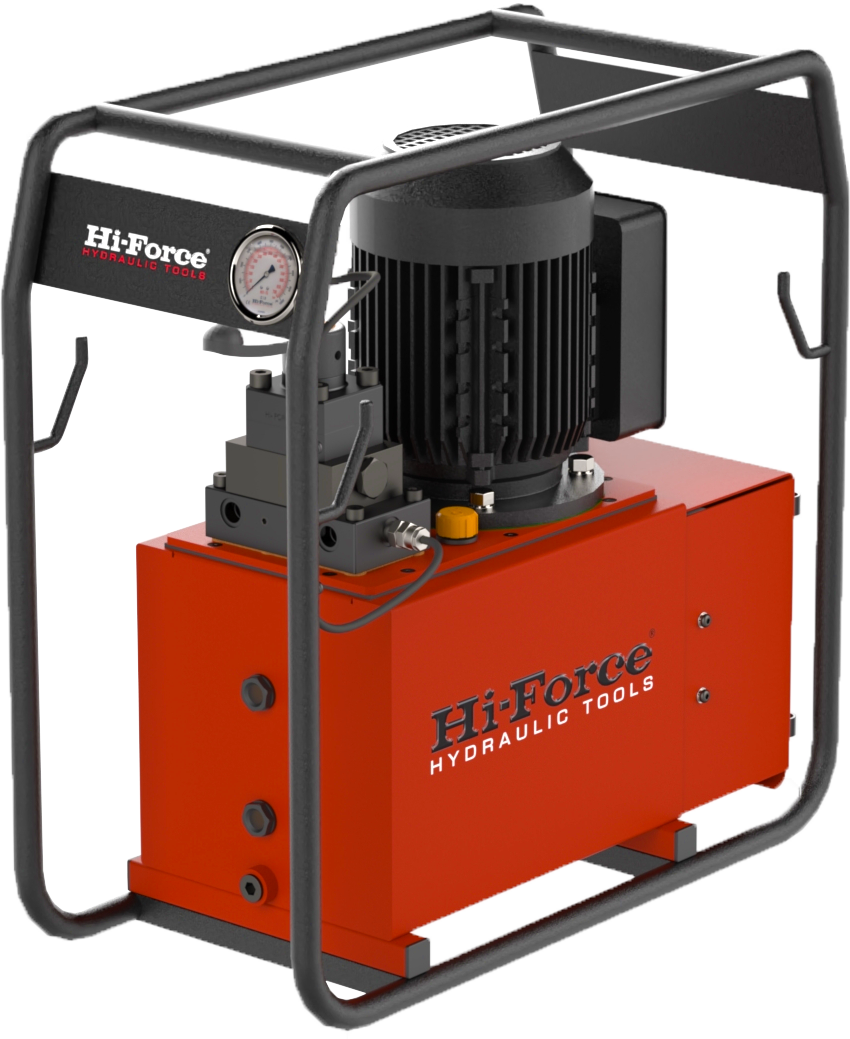

HEP2 - Electric Driven Pumps - General Duty Medium Flow

• Working pressure 10,000 psi

• Two stage operation

• Choice of 2.64 or 6.6 gallon oil reservoir


Choice of 110/115, 220/240 or 380/440 volt electric motors available as standard. Choice of 2, 3 or 4-way manual control valves with load holding feature on 3 & 4-way versions. Externally adjustable pressure relief for pressure settings up to 10,000 psi. Completely enclosed fan cooled low noise electric motors. Cable management features for cable/hose winding and stowage. Supplied as standard with pressure gauge and a robust roll frame.

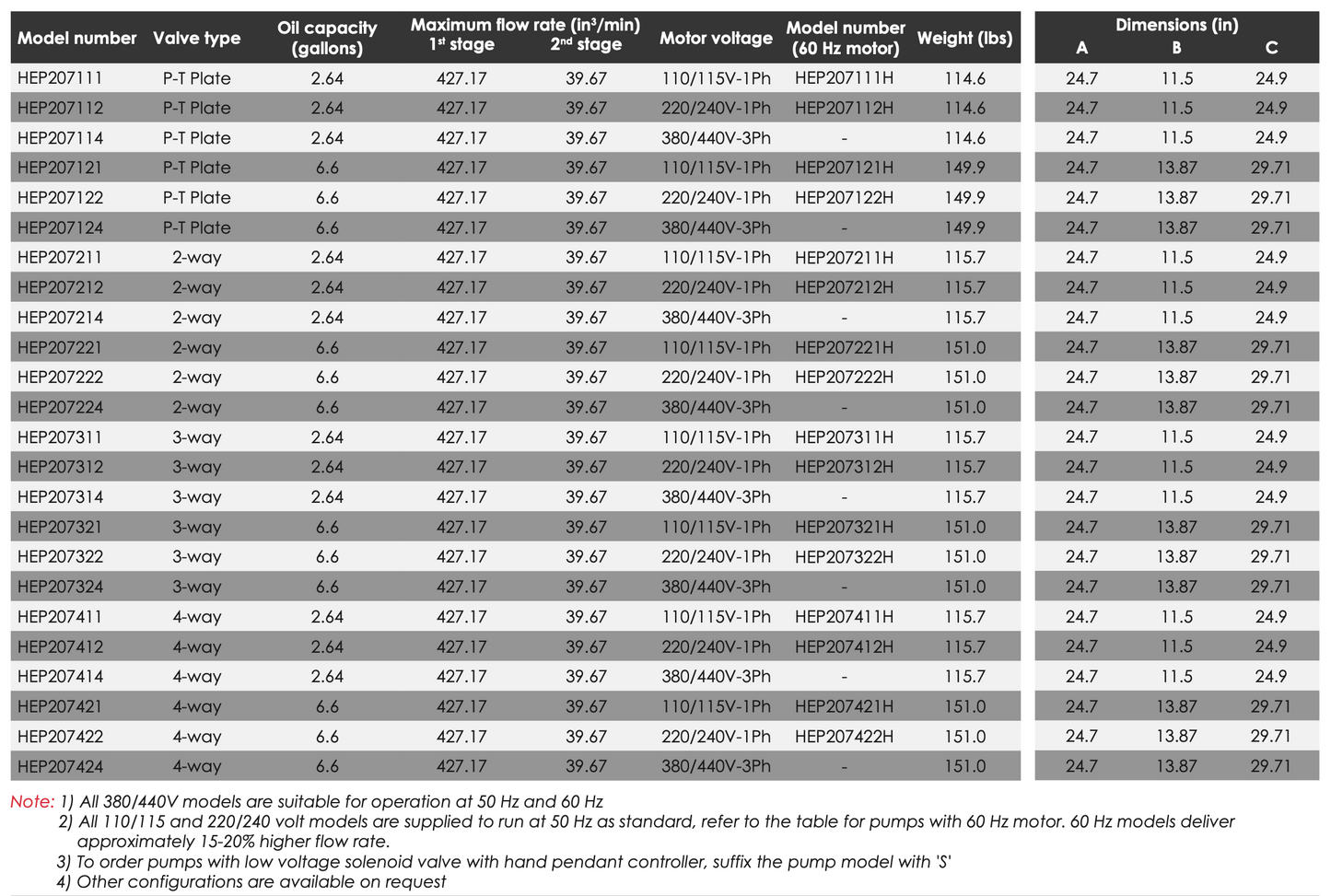

Notes:

1. All 380/440V models are suitable for operation at 50 Hz and 60 Hz.
2. All 110/115 and 220/240 volt models are supplied to run at 50 Hz as standard, refer to the table for pumps with 60 Hz motor. 60 Hz models deliver approximately 15-20% higher flow rate.
3. To order pumps with low voltage solenoid valve with hand pendant controller, add an "S" to the pump model number.

4. Other configurations are available on request.
