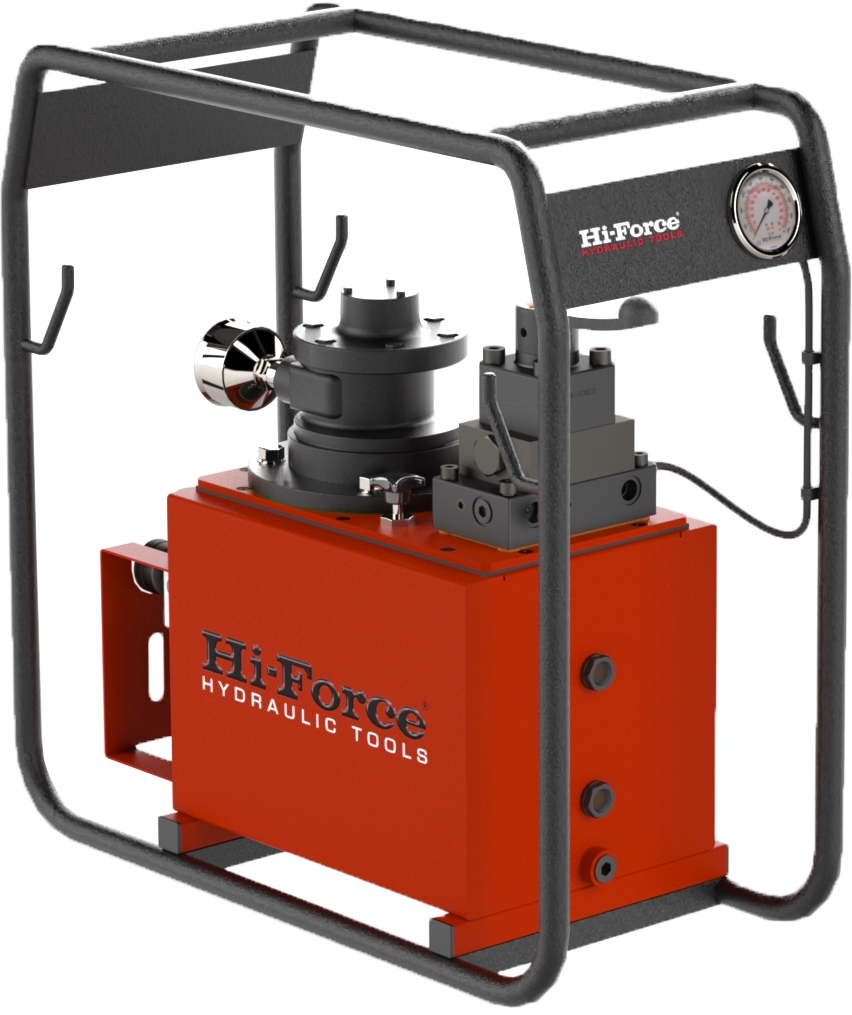

HAP - Air Driven Pumps - General Duty High Flow
Working pressure 10,000 psi
- Two stage operation
- Choice of 2.64 or 6.6 gallons oil reservoir
Driven by a powerful 4.08 kW rotary air motor with a maximum air consumption of 84.75 cubic feet per minute at 100 psi inlet air pressure. Choice of 2, 3, or 4-way manual control valves with load holding feature on 3 & 4-way versions. Externally adjustable pressure relief valve for pressure setting up to a maximum of 10,000 psi. Cable management features for cable/ hose winding and stowage. Supplied as standard with pressure gauge FRL unit and a robust roll frame.
