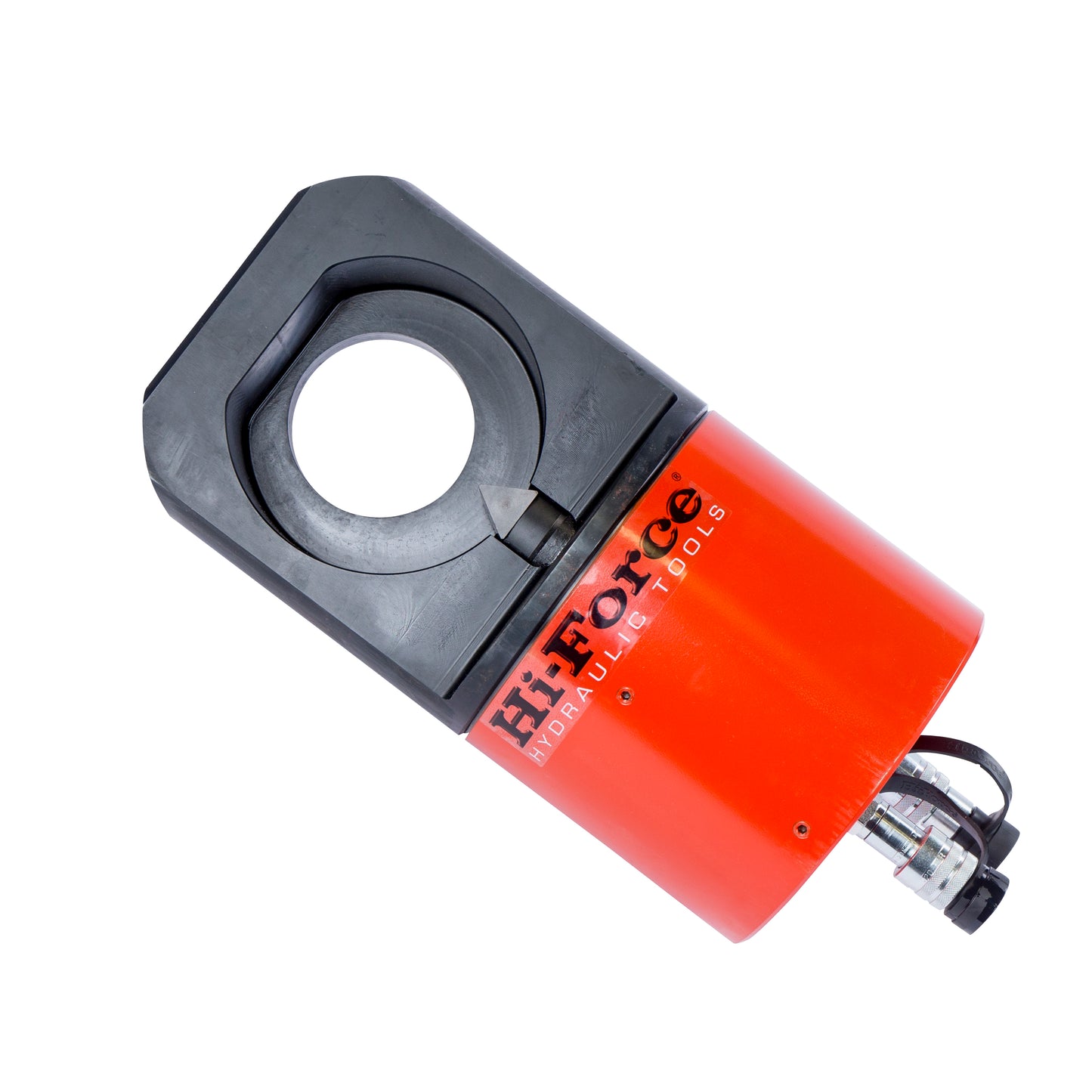

DNS Double Acting Nut Splitters

• Working pressure 10,000 psi
• Nut AF sizes from 2 15⁄16 ” to 5 3⁄8 ”
• Bolt sizes from 1 7⁄8 ” to 3 ½”

Double acting hydraulic piston for easy extension and retraction of the blade. Angled body design for increased clearance on flanges and flat surfaces. High quality steel construction. Suitable for splitting nuts up to RC44 hardness. Designed to fit on most API and ANSI flanges. Steel linkage keeps blade cutting edge parallel to the nut throughout the splitting process.

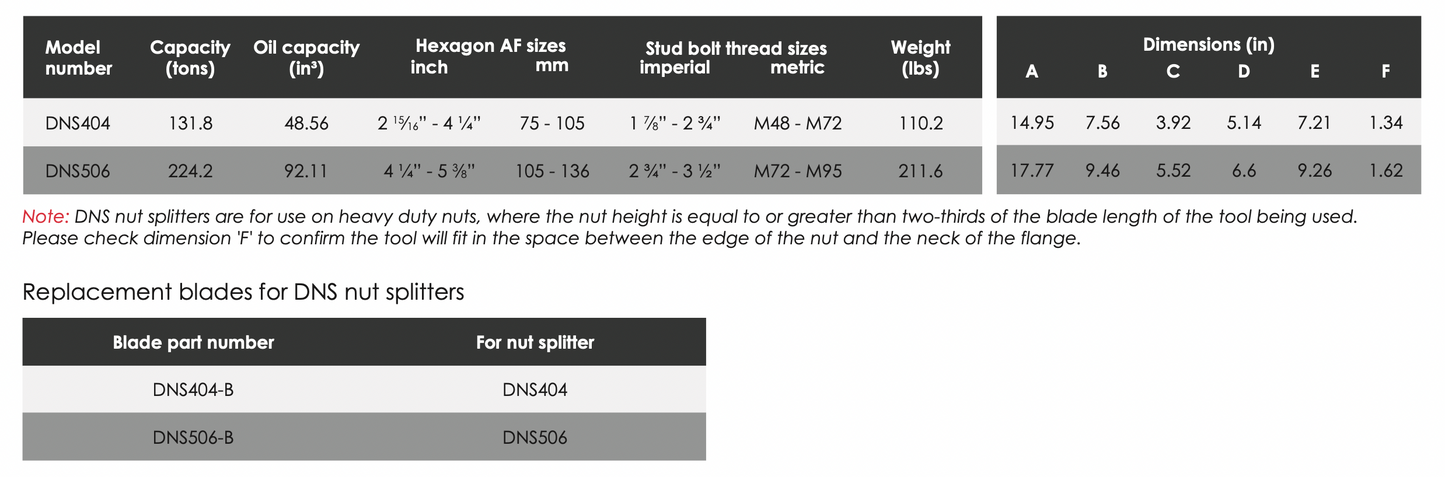

For replacement blade only, add a "B" to the model number.

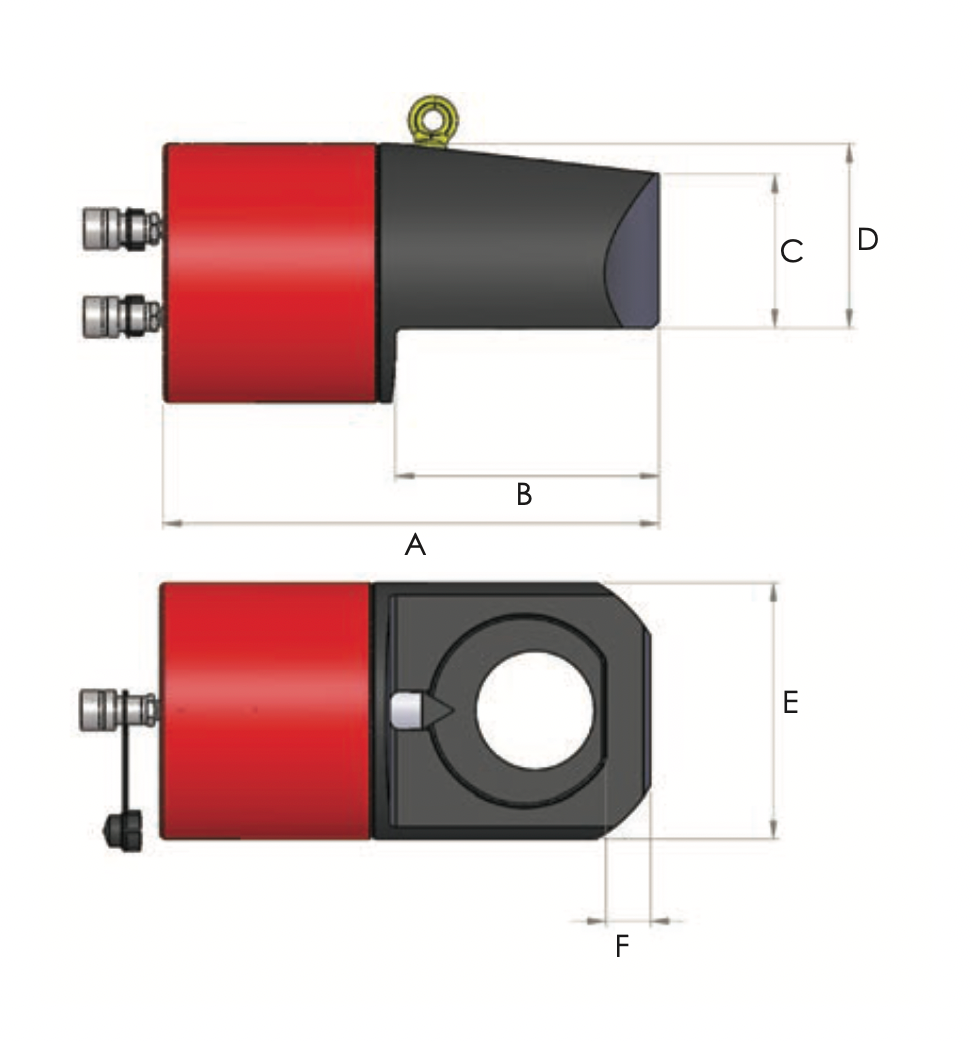

Note: DNS nut splitters are for use on heavy duty nuts, where the nut height is equal to or greater than two-thirds of the blade length of the tool being used. Please check dimension F to confirm the tool will fit in the space between the edge of the nut and the neck of the flange.
