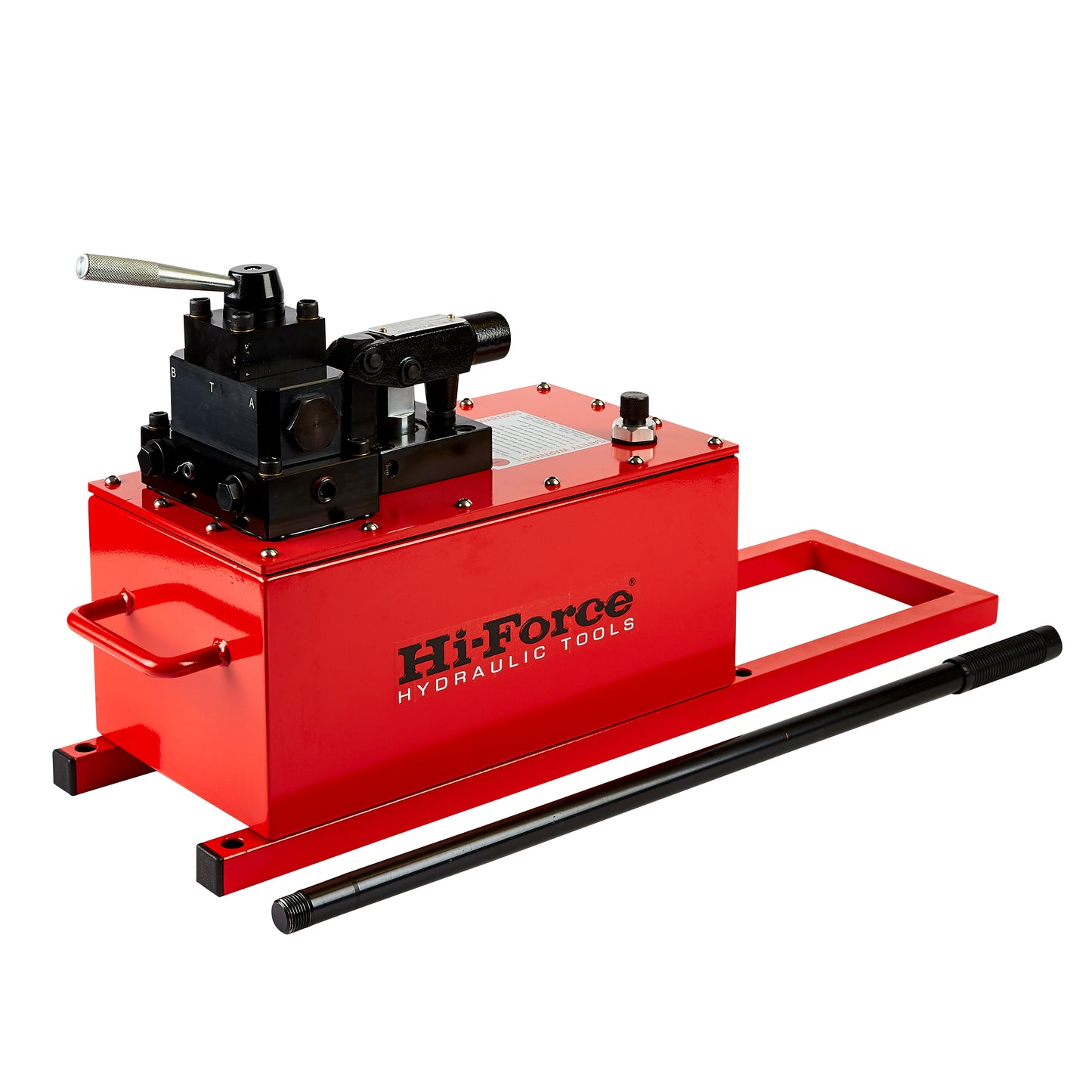

HP - Manually Operated Pumps - High Flow

• Heavy duty steel construction

• Working pressure 10,000 psi
• Two state with semi automatic changeover


Oil reservoir capacity 2.64 gallons. Factory set safety relief valve fitted as standard. Available with 2-way valve for use with single acting cylinders and 4-way valve for use with double acting cylinders. 1st stage flow rate of 6.89 cubic inches per handle stroke for faster extension & retraction of piston under no load. Changeover pressure is 406 psi. Low handle effort and ergonomic grip for easy operation.
