CH Cable Crimping Heads

• 7 models available

• 180-degree rotating head

• Working pressure 10,000 psi


Open C jaw or parallel guide design. 180˚ rotating head for easy access in confined spaces. Supplied with standard die sets and carrying case. Quick connect coupling for easy connection to 10,000 psi rated hydraulic pump.

Pair with foot operated pump assembly.

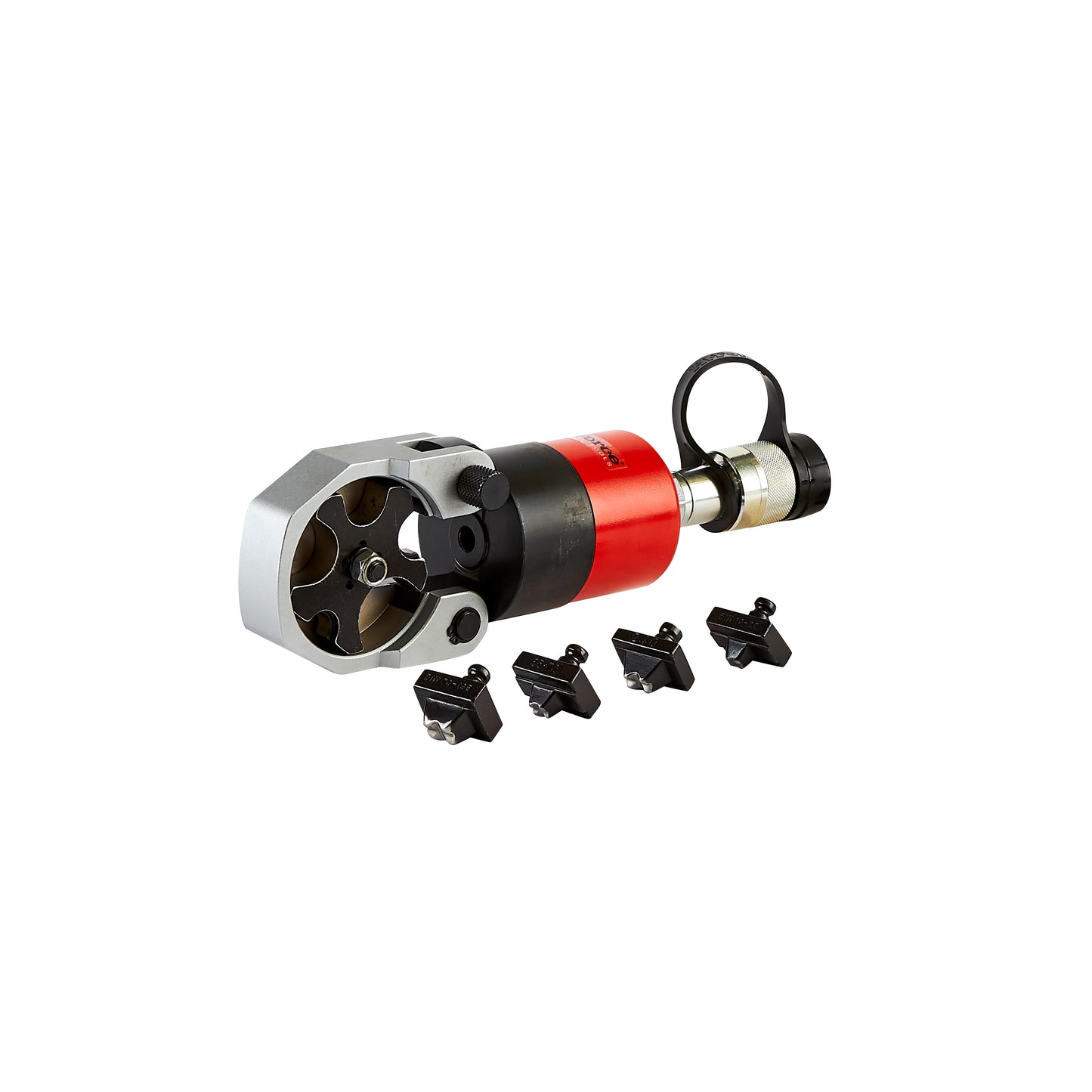

• Model CH21 is suitable for crimping non-insulated terminals up to 240 mm²

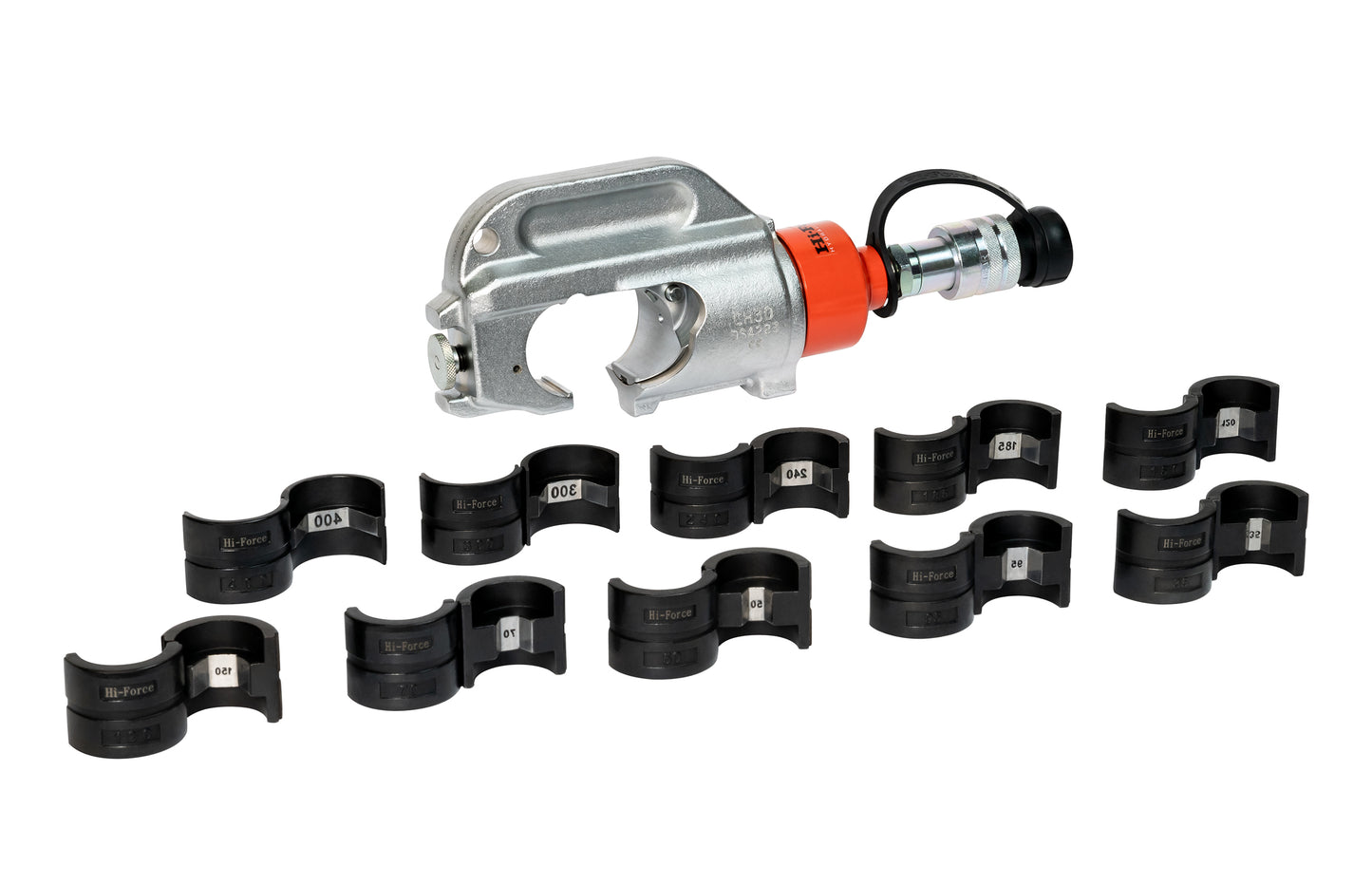

• Models CH30, CH32 & CH40 are suitable for crimping connectors up to 400 mm²

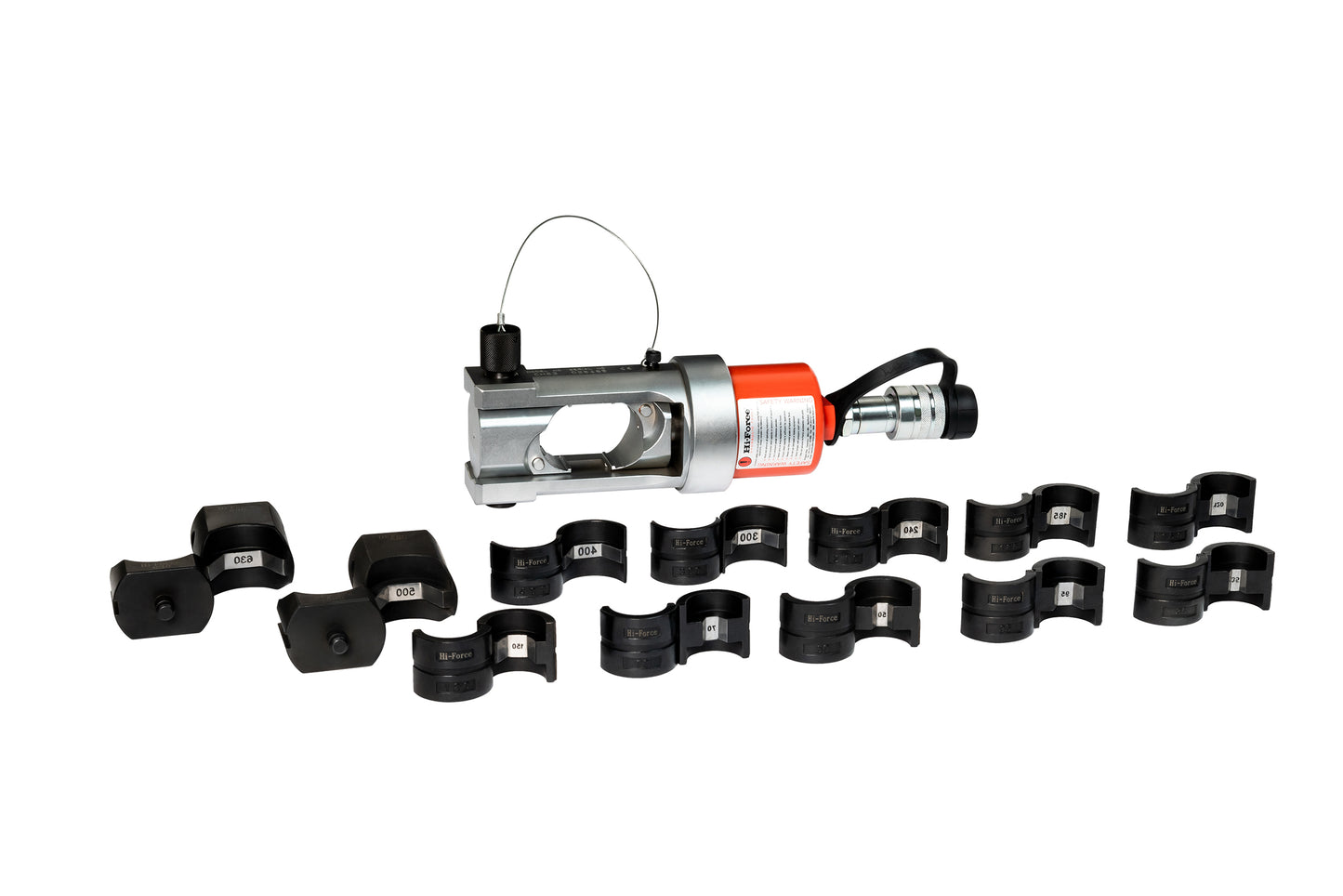

• Models CH63 & CH80 are suitable for crimping connectors up to 630 mm²
• Model CH1000N is suitable for crimping distribution and transmission lines up to 1000 mm²
